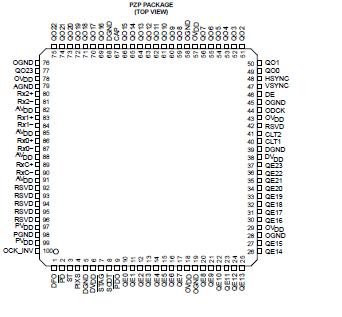

TFP403

Supply voltage range, DV_DD, AV_DD, OV_DD, PV_DD . . . . . . . . .  . . . . . . . . . . . . . . . . . 0.3 V to 4 V
Input voltage range, logic/analog signals . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 4 V
Operating ambient temperature range . . . . . . . . . . .  . . . . . . . . . . . . . . . ... . . . . . 0°C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . -65°C to 150°C
Case temperature for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . 260°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . .. . . . . . . . . . .. . . . . . 260°C
Package power dissipation/PowerPAD: Soldered (see Note 1) . . . . .. . . . . . . . . . . .  . . . . 4.3 W
                                                            Not soldered (see Note 2) . . .. . . . . . . . . . . . .  . . . 2.7 W
ESD Protection, all pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 2.5 KV Human Body Model
JEDEC latch up (EIA/JESD78) . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . 100 mA

The Texas Instruments TFP403 is a PanelBus flat panel display products, part of a comprehensive family of end-to-end DVI 1.0 compliant solutions. Targeted primarily at desktop LCD monitors and digital projectors, the TFP403 finds applications in any design requiring high-speed digital interface.

The TFP403 supports display resolutions up to UXGA in 24-bit true color pixel format. The TFP403 offers design flexibility to drive one or two pixels per clock, supports TFT or DSTN panels, and provides an option for time staggered pixel outputs for reduced ground bounce.

PowerPAD advanced packaging technology results in best of class power dissipation, footprint, and ultralow ground inductance.

The TFP403 combines PanelBus circuit innovation with TIs advanced 0.18-m EPIC-5 CMOS process technology, along with PowerPAD package technology to achieve a reliable, low-powered, low-noise,high-speed digital interface solution.
