Product Details

Description



Pinout

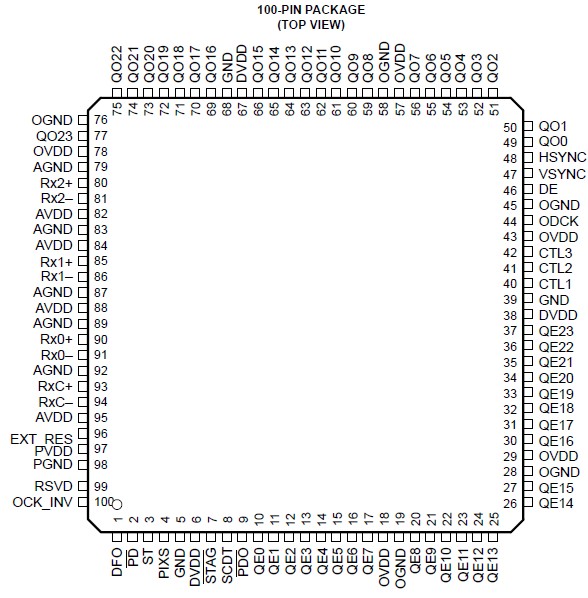

  Connection Diagram


Specifications

Supply voltage range, DVDD, AVDD, OVDD, PVDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 V to 4 V
Input voltage range, logic/analog signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .. -0.3 V to 4 V
Operating ambient temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -65°C to 150°C
Case temperature for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . ..260°C
Package power dissipation/PowerPADTM: Soldered (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . .4.3 W
                                                                 Not soldered (see Note 2) . . . . . . . . . . . . . . . . . . . . . 2.7 W
ESD Protection, all pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   2.5 KV Human Body Model
JEDEC latchup (EIA/JESD78) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 mA




Description

The Texas Instruments TFP401 and TFP401A are TI PanelBusTM flat panel display products, part of acomprehensive family of end-to-end DVI 1.0 compliant solutions. Targeted primarily at desktop LCD monitors and digital projectors, the TFP401/401A finds applications in any design requiring high-speed digital interface.

The TFP401/401A supports display resolutions up to UXGA in 24-bit true color pixel format. The TFP401/401Aoffers design flexibility to drive one or two pixels per clock, supports TFT or DSTN panels, and provides an option for time staggered pixel outputs for reduced ground bounce.

PowerPADTM advanced packaging technology results in best of class power dissipation, footprint, and ultra-low ground inductance.

The TFP401/401A combines PanelBusTM circuit innovation with TI's advanced 0.18-m EPIC-5TM CMOS process technology, along with TI PowerPADTM package technology to achieve a reliable, low-powered, low noise, high-speed digital interface solution.
