TEA6850

Features: · Improved dynamic selectivity and sensitivity because of tunable IF filter· Fully integrated, frequency matched FM demodulator· High linearity· Unweighted level detector output· Soft mute· MPX output for RDS and diversity· Internal source selector.PinoutSpecifications SYMBOL PARAM...

product image

TEA6850 Picture
See larger image
SeekIC No. : 004517408 Detail

TEA6850: Features: · Improved dynamic selectivity and sensitivity because of tunable IF filter· Fully integrated, frequency matched FM demodulator· High linearity· Unweighted level detector output· Soft mute...

TEA6850 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TEA6850
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Improved dynamic selectivity and sensitivity because of tunable IF filter
· Fully integrated, frequency matched FM demodulator
· High linearity
· Unweighted level detector output
· Soft mute
· MPX output for RDS and diversity
· Internal source selector.

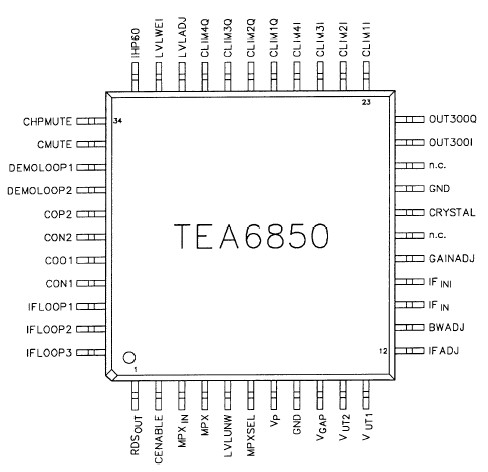

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VP supply voltage -0.3 +12 V
IP supply current - 21 mA
Tstg storage temperature -55
 +125
Tamb operating ambient temperature
 -40 +85
Ptot total power dissipation - 252 mW
VESD electrostatic handling for all pins (note 1) - ±300 V



Description

The TEA6850 is a monolithic bipolar integrated circuit for IF filtering, FM demodulation and level detection. Using IF filters tuned by the demodulated signal, dynamic selectivity and sensitivity are improved.
