TEA6823T

Features: · FM mixer for conversion from FM-IF1 = 72.2 MHz to FM-IF2 = 10.7 MHz· AM mixer for conversion from AM-IF1 = 10.7 MHz to AM-IF2 = 450 kHz· FM-IF gain stage· Crystal oscillator providing mixer frequencies and references for IF-count and stereo decoder· FM quadrature demodulator with autom...

product image

TEA6823T Picture
See larger image
SeekIC No. : 004517394 Detail

TEA6823T: Features: · FM mixer for conversion from FM-IF1 = 72.2 MHz to FM-IF2 = 10.7 MHz· AM mixer for conversion from AM-IF1 = 10.7 MHz to AM-IF2 = 450 kHz· FM-IF gain stage· Crystal oscillator providing mi...

TEA6823T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TEA6823T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· FM mixer for conversion from FM-IF1 = 72.2 MHz to FM-IF2 = 10.7 MHz
· AM mixer for conversion from AM-IF1 = 10.7 MHz to AM-IF2 = 450 kHz
· FM-IF gain stage
· Crystal oscillator providing mixer frequencies and references for IF-count and stereo decoder
· FM quadrature demodulator with automatic centre frequency adjustment and THD compensation
· Level, multi-path and noise detectors
· Soft mute
· Stereo noise cancelling and variable de-emphasis
· PLL stereo decoder
· Noise blanker
· AM IF-amplifier and demodulator
· I2C-bus transceiver with interface to enable direct data transfer to radio front-end
· IF-count for AM and FM
· Reference frequency generation for PLL synthesizer.


Pinout

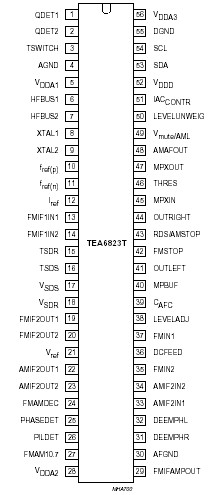

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDDA1 analog supply voltage 1 (pin 5)   -0.3 +6.5 V
VDDA2 analog supply voltage 2 (pin 28)   -0.3 +12 V
VDDA3 analog supply voltage 3 (pin 56)   -0.3 +12 V
VDDD digital supply voltage (pin 52)   -0.3 +6.5 V
Tstg storage temperature   -55
 +150
Tamb
 operating ambient temperature   -40 +85
Ves electrostatic handling
pins 8 and 9
all other pins		 note 1 -100
-300		 +100
+300		 V
V



Description

The TEA6823T together with the TEA6811T and the TEA6825T together with the TEA6810T form an AM/FM electronic tuned car radio in a double conversion receiver concept.
