TEA6821T

Features: · FM mixer for conversion from FM IF1 = 72.2 MHz to FM IF2 = 10.7 MHz· AM mixer for conversion from AM IF1 = 10.7 MHz to AM IF2 = 450 kHz· FM IF gain stage· Crystal oscillator providing mixer frequencies and references for IF count and stereo decoder· FM quadrature demodulator with autom...

product image

TEA6821T Picture
See larger image
SeekIC No. : 004517392 Detail

TEA6821T: Features: · FM mixer for conversion from FM IF1 = 72.2 MHz to FM IF2 = 10.7 MHz· AM mixer for conversion from AM IF1 = 10.7 MHz to AM IF2 = 450 kHz· FM IF gain stage· Crystal oscillator providing mi...

TEA6821T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TEA6821T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· FM mixer for conversion from FM IF1 = 72.2 MHz to FM IF2 = 10.7 MHz
· AM mixer for conversion from AM IF1 = 10.7 MHz to AM IF2 = 450 kHz
· FM IF gain stage
· Crystal oscillator providing mixer frequencies and references for IF count and stereo decoder
· FM quadrature demodulator with automatic centre frequency adjust and THD compensation
· Level and multipath and noise detectors
· Soft mute
· Stereo noise cancelling and variable de-emphasis
· PLL stereo decoder
· Noise blanker
· AM IF amplifier and demodulator
· I2C-bus transceiver
· IF count for AM and FM
· Reference frequency generation for PLL synthesizer
· Reduced external components
· SW applicable.



Pinout

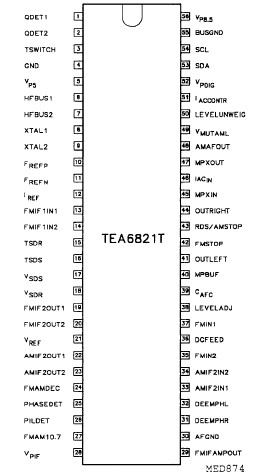

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
Vs1 supply voltage 1 (pins 56 and 28) -0.3 +12 V
Vs2 supply voltage 2 (pin 5) -0.3 +6.5 V
Vs3 supply voltage 3 (pin 52) -0.3 +6.5 V
Tstg
 storage temperature -55 +150
Tamb operating ambient temperature -40 +85
VESD electrostatic handling (note 1)
for pins 8 and 9
for other pins		 -
-		 ±100
±300		 V
V



Description

The TEA6821T together with the TEA6810T / TEA6811T forms an AM/FM electronic tuned car radio in a double conversion receiver concept for European, American and Japanese frequency range.
