Product Details

Description

Features:

·5 STEREO INPUTS
·4 STEREO OUPUTS
·GAIN CONTROL 0/2/4/6dB/MUTEFOR EACH OUTPUT
·CASCADABLE (2 different addresses)
·SERIALBUS CONTROLLED
·VERY LOWNOISE .VERY LOWDISTORSION

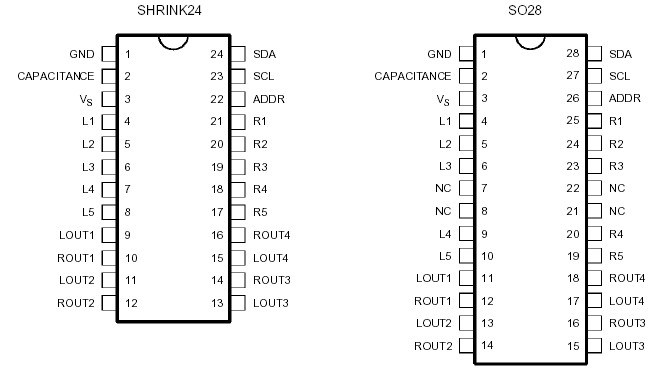

Pinout

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	Supply Voltage	12	V
T_oper	Operating Ambient Temperature	0, + 70
T_stg	Storage Temperature	-20, + 150

Description

The TEA6420 switches 5 stereo audio inputs on 4 stereo outputs.

All the switching possibilities are changed through the I2C bus.
