TEA6415C

Data Rate :
Input Level :
Output Level :
Product : Analog Crosspoint
Packaging : Tube
Minimum Operating Temperature : 0 C
Maximum Operating Temperature : + 70 C
Configuration : 8 x 6
Package / Case : PDIP-20
Supply Voltage - Max : 11 V
Supply Voltage - Min : 8 V


Features:

·20MHz BANDWIDTH
·CASCADABLE WITH ANOTHER TEA6415C (INTERNAL ADDRESS CAN BE CHANGED BY PIN 7 VOLTAGE)
·8 INPUTS (CVBS, RGB, MAC, CHROMA, ...)
·6 OUTPUTS
·POSSIBILITY OF MAC OR CHROMA SIGNAL FOR EACH INPUT BY SWITCHING-OFF THE CLAMP WITH AN EXTERNAL RESISTOR BRIDGE
·BUS CONTROLLED
·6.5dB GAIN BETWEEN ANY INPUT AND OUTPUT
·-55dB CROSSTALK AT 5MHz
·FULLY ESD PROTECTED

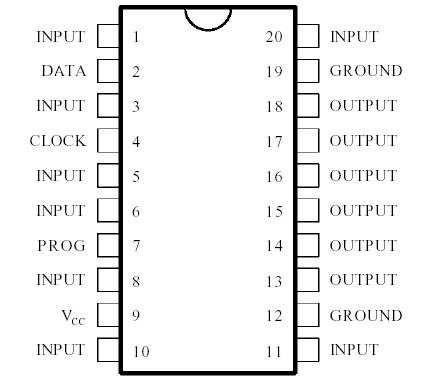

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCC	Supply Voltage (Pin 9)	12	V
TA	Operating Ambient Temperature	0, + 70
Tstg	Storage Temperature	-20, + 150

Description

The main function of the TEA6415C is to switch 8 video input sources on the 6 outputs.

Each output can be switched to only one of the inputs whereas but any same input may be connected to several outputs.

All the switching possibilities arecontrolled through the I²C bus.
