TEA6414A

Features: ·15MHz BANDWIDTH·8 INPUTS (CVBS, RGB, MAC, chroma...)·6 OUTPUTS·POSSIBILITYOF MAC OR CHROMA SIGNAL·FOR EACH INPUT BY SWITCHING-OFF THE CLAMP WITH AN EXTERNAL RESISTOR BRIDGE·BUS CONTROLLED·6.5dB GAIN BETWEEN ANY INPUT AND OUTPUT ·- 50dBCROSSTALK AT 5MHz·FULLY PROTECTED AGAINST ESDPinoutS...

product image

TEA6414A Picture
See larger image
SeekIC No. : 004517383 Detail

TEA6414A: Features: ·15MHz BANDWIDTH·8 INPUTS (CVBS, RGB, MAC, chroma...)·6 OUTPUTS·POSSIBILITYOF MAC OR CHROMA SIGNAL·FOR EACH INPUT BY SWITCHING-OFF THE CLAMP WITH AN EXTERNAL RESISTOR BRIDGE·BUS CONTROLLED...

TEA6414A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TEA6414A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·15MHz BANDWIDTH
·8 INPUTS (CVBS, RGB, MAC, chroma...)
·6 OUTPUTS
·POSSIBILITYOF MAC OR CHROMA SIGNAL
·FOR EACH INPUT BY SWITCHING-OFF THE CLAMP WITH AN EXTERNAL RESISTOR BRIDGE
·BUS CONTROLLED
·6.5dB GAIN BETWEEN ANY INPUT AND OUTPUT
·- 50dBCROSSTALK AT 5MHz
·FULLY PROTECTED AGAINST ESD



Pinout

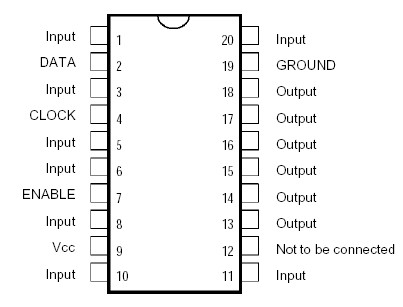

Connection Diagram


Specifications

Symbol Parameter Value
 Unit
VCC Supply Voltage 13 V
TA Operating Ambient Temperature Range 0, + 70
Tstg Storage Temperature Range -20, + 150



Description

The main function of the TEA6414Ais to switch 8 video input sources on the 6 outputs.

Each output can be switched to only one of the inputs whereas any same input may be connected to several outputs.

All the switching possibilities are changed through the 3-Wire Bus (THOMSON BUS).
