Product Details

Description



Features:

· Monolithic integrated 5-band stereo equalizer circuit
· Five filters for each channel
· Centre frequency, bandwidth and maximum boost/cut defined by external components
· Choise for variable or constant Q-factor via I2C software
· Defeat mode
· All stages are DC-coupled
· I2C-bus control for all functions
· Two different modul addresses programmable.


Pinout

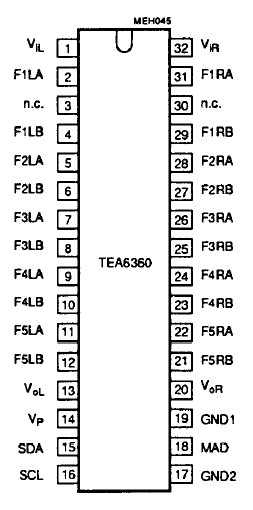

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VP supply voltage (pin 14) 0 13.2 V
Vn voltage on all pins, grounds excluded 0 VP V
Ptot total power dissipation 0 500 mW
Tstg storage temperature range -40 150
  storage temperature range -40 150
Tamb operating ambient temperature range -40 85
VESD electrostatic handling(1) for all pins   ±500 V



Description

The 5-band stereo equalizer TEA6360 is an 12C-bus controlled tone processor for application in car radio sets, TV sets and music centres. It offers the possibility of sound control as well as equalization of sound pressure behaviour of different rooms or loudspeakers, especially in cars.
