Product Details

Description



Features:

· Stereo/hi-fi processor for car radios performed with volume, balance, bass and treble controls
· Sound fader control (front/rear) down to -30 dB in steps of 2 dB
· Fast muting via bus or via setting the muting pin
· Suitable for external audio equalizers, can be looped-in controlled by the I2C-bus
· Power-on reset on chip sets the device into general mute position
· AC and DC short-circuit protected concerning neighbouring pins
· I2C-bus control for all functions.



Pinout

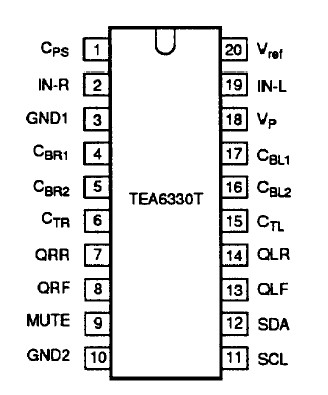

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VP supply voltage (pin 18) 0 10 V
Ptot total power dissipation 0 700 mW
Tstg storage temperature range -55 150
Tamb operating ambient temperature range -40 85
VESD electrostatic handling* for all pins - ±300 V
electrostatic handling** for all pins - ±4000 V



Description

This bipolar IC TEA6330T is an I2C-bus controlled sound/volume controller for car radios, in addition with fader function and the possibility of an external equalizer.
