Position: Home  > All Categories> Integrated Circuits (ICs) > TEA6324T

TEA6324T

Features: · Source selector for two stereo and one mono inputs· Interface for noise reduction circuits· Interface for external equalizer· Volume and balance control· Bass control with equalizer filters· Treble control· Mute control at audio signal zero crossing· Fast mute control via I2C-bus· Fast...

product image

TEA6324T Picture
See larger image
SeekIC No. : 004517380 Detail

TEA6324T: Features: · Source selector for two stereo and one mono inputs· Interface for noise reduction circuits· Interface for external equalizer· Volume and balance control· Bass control with equalizer filt...

TEA6324T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TEA6324T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Source selector for two stereo and one mono inputs
· Interface for noise reduction circuits
· Interface for external equalizer
· Volume and balance control
· Bass control with equalizer filters
· Treble control
· Mute control at audio signal zero crossing
· Fast mute control via I2C-bus
· Fast mute control via pin
· I2C-bus control for all functions
· Power supply with internal power-on reset.


Pinout

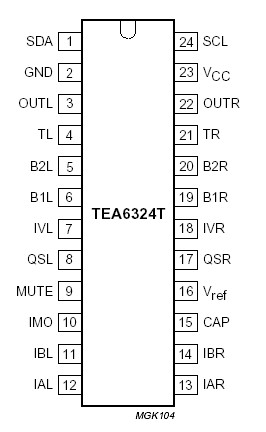

Connection Diagram


Specifications

SYMBOL SYMBOL CONDITIONS MIN. MAX. UNIT
VCC
 supply voltage   0 10 V
Vn voltage at all pins relative to pin 2   0 VCC V
Tamb operating ambient temperature   -40 +85
Tstg storage temperature   -65 +150
Ves electrostatic handling note 1 - -



Description

The sound control circuit TEA6324T is an I2C-bus controlled stereo preamplifier for car radio hi-fi sound applications.
