Product Details

Description

Features:

· Source selector for four stereo and one mono inputs
· Interface for noise reduction circuits
· Interface for external equalizer
· Volume, balance and fader control
· Special loudness characteristic automatically controlled in combination with volume setting
· Bass control with equalizer filters
· Treble control
· Mute control at audio signal zero crossing
· Fast mute control via I2C-bus
· Fast mute control via pin
· I2C-bus control for all functions
· Power supply with internal power-on reset.

Pinout

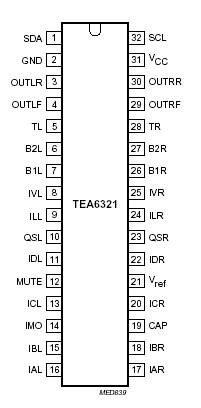

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
V_CC	supply voltage		0	10	V
V_n	voltage at pins 1 and 3 to 32 to pin 2		0	V_CC	V
T_amb	operating ambient temperature		-40	+85
T_stg	storage temperature		-65	+150
V_es	electrostatic handling	note 1

Description

The sound fader control circuit TEA6321 is an I2C-bus controlled stereo preamplifier for car radio hi-fi sound applications.
