Product Details

Description



Features:

· Source selector for three stereo inputs
· Inputs and outputs for noise reduction circuits
· Volume and balance control; control range of 86 dB in steps of 2 dB
· Bass and treble control from + 15 dB (treble 12 dB) to -12 dB in steps of 3 dB
· Fader control from 0 dB to -30 dB in steps of 2 dB
· Fast muting
· Low noise suitable for DOLBY* B and C NR (noise reduction)
· Signal handling suitable for compact disc
· I2C-bus control for all functions
· ESD protected


Pinout

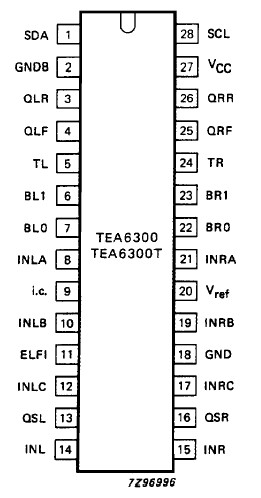

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VCC
 Supply voltage (pin 27-18) - 16 V
Ptot Maximum power dissipation - 1 W
Tstg Storage temperature range -55 +150
Tamb Operating ambient temperature range -40 +85



Description

The Sound Fader Control circuit (SOFAC) TEA6300T is an I2C-bus controlled preamplifier for car radios.
