Features:

·AUTOMATIC TIME CONSTANT SWITCHING FOR VCR
·DIGITAL VIDEO IDENTIFICATION CIRCUIT
·500kHz RESONATOR OSCILLATOR
·NO LINE AND FRAME OSCILLATOR ADJUSTMENT
·DUAL PLL FOR LINE DEFLECTION
·SUPER SANDCASTLE OUTPUT
·AUTOMATIC 50Hz/60Hz STANDARD IDENTIFICATION
·EXCELLENT INTERLACING CONTROL
·FRAME SAFETY INPUT
·FRAME SAWTOOTH GENERATOR
·FULLY ESD AND LATCH-UP PROTECTED


Pinout

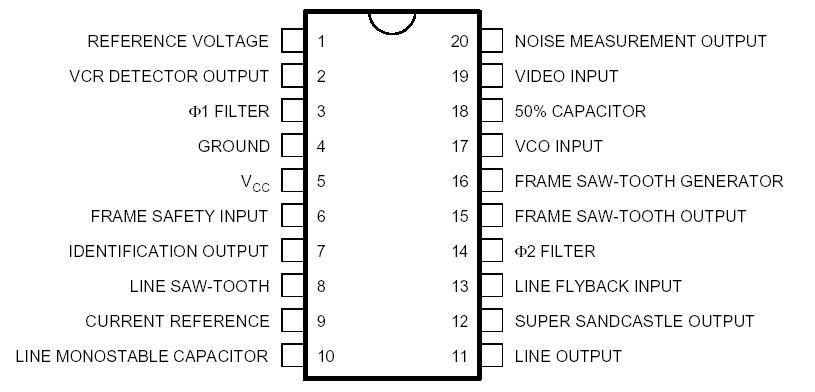

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage 13.5 V
V16 Pulse/Frame Sawtooth Generator Voltage VCC - 3 V
I11 Output Current 40 mA
I13 Input Current ± 5 mA
TAMB Operating Ambient Temperature 0 , + 70 °C



Description

The TEA2130 is a complete (horizontal and vertical) deflection processor, for TV applications and all applications which require a flexible, high performance scanning processor (Satellite Decoder, Video Multimedia).
