TEA2014A

Video ICs Video Switch

product image

TEA2014A Picture
See larger image
SeekIC No. : 00475777 Detail

TEA2014A: Video ICs Video Switch

TEA2014A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TEA2014A
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Maximum Operating Temperature : + 70 C Package / Case : PDIP-8
Packaging : Tube

Description

Operating Supply Voltage :
Supply Current :
Packaging : Tube
Maximum Operating Temperature : + 70 C
Package / Case : PDIP-8


Features:

·1 VIDEO OUTPUT 75W- 1VPP NOT SWITCHED
·1 SWITCHED VIDEO OUTPUT 2VPP
·VIDEOCROSSTALK : 50dB TYPICAL
·SHORT CIRCUIT PROTECTION OF INPUTS AND OUTPUTS
·CLAMPED VIDEO INPUTS


Pinout

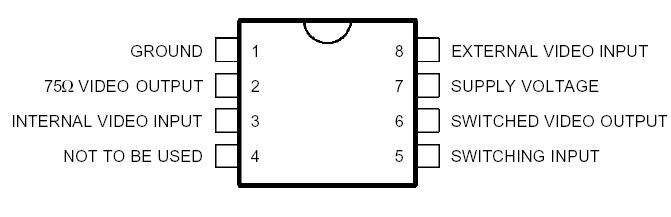

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage 18 V
Toper Operating Temperature
with Load > 150 on PIN 2
with Load = 75 on PIN 2		 0, + 100
0, + 70		 °C
Tj Junction Temperature - 40, + 150 °C
Tstg Storage Temperature Range 40, + 150 °C
Minimum DC Load Resistor PIN 6
Minimum DC Load Resistor PIN 2		 600
75



Description

This integrated circuit provides all video switching allowing connections between the peri TV plug and video sections in the TV set. The TEA2014A is supplied in a DIP8.
