Product Details

Description

Features:

·2 VIDEO OUTPUTS WITH 150W LOAD DRIVE CAPABILITY
·DYNAMIC OUTPUT AMPLITUDE 4 V_PP ON EACH OUTPUT
·BANDWIDTH 18MHz TYP
·CLAMPED VIDEO INPUTS
·FULL PROTECTION AGAINST ESD

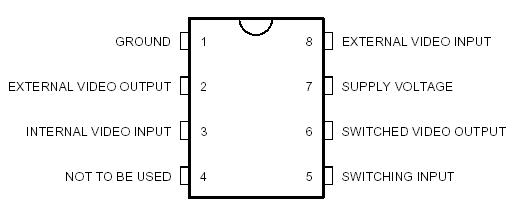

Pinout

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	Supply Voltage	14	V
T_j	Junction Temperature	- 40, + 150	°C
T_stg	Storage Temperature	- 40, + 150	°C

Description

This integrated circuit provides general video switches. It is particularly intended for switching between the peri TV plug and video section of the sets. Its electrical performances make it suitable for wide bandwidth applications (Teletext, D2MAC).
