Product Details

Description



Features:

·2 VIDEO OUTPUTS WITH 150W LOAD DRIVE CAPABILITY
·DYNAMIC OUTPUT AMPLITUDE 4 VPP ON EACH OUTPUT ·BANDWIDTH 18MHz TYP
·CLAMPED VIDEO INPUTS
·FULL PROTECTION AGAINST ESD


Pinout

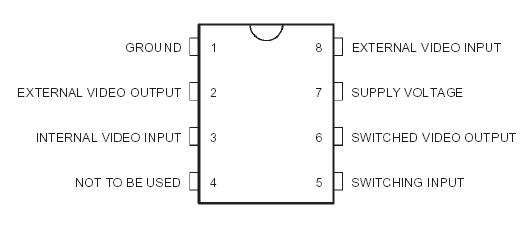

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage 18 V
Tj Junction Temperature - 40, + 150 °C
Tstg Storage Temperature Range 40, + 150 °C



Description

This integrated circuit provides general video switches. It is particularly intended for switching between the peri TV plug and video section of the sets. Its electrical performancesmakeit suitablefor wide bandwidth applications (Teletext, D2MAC).
