TDF5242

Features: ` Full-wave commutation without position sensors` Built-in start-up circuitry` Six outputs that can drive three external transistor pairs: output current 0.2 A (typ.) low saturation voltage built-in current limiter` Thermal protection` Tacho output without extra sensor` Transconductance ...

product image

TDF5242 Picture
See larger image
SeekIC No. : 004517061 Detail

TDF5242: Features: ` Full-wave commutation without position sensors` Built-in start-up circuitry` Six outputs that can drive three external transistor pairs: output current 0.2 A (typ.) low saturation voltag...

TDF5242 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDF5242
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Full-wave commutation without position sensors
` Built-in start-up circuitry
` Six outputs that can drive three external transistor pairs:
output current 0.2 A (typ.)
low saturation voltage
built-in current limiter
` Thermal protection
` Tacho output without extra sensor
` Transconductance amplifier for an external control transistor
` Brake control input
` Direction control input.


Application

` High-power applications, for instance:
high-end hard disk drives
automotive applications.


Pinout

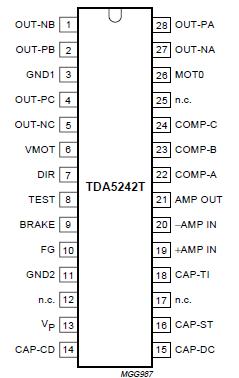

Connection Diagram


Description

The TDF5242T is a bipolar integrated circuit for driving 3-phase brushless DC motors in full-wave mode.

The TDF5242T device functions sensorless, thus saving 3 hall-effect sensors, using the back-EMF (Electro Motive Force) sensing technique to sense the rotor position. It includes 6 pre-drivers able to control external FETs (Field Effect Transistors) or bipolar transistors. It offers brake and direction control. It is ideally suited for high-power applications such as high-end hard disk drives and automotive applications.
