Product Details

Description



Features:

` Full-wave commutation (using push/pull drivers at the output stages) without position sensors
` Built-in start-up circuitry
` Three push-pull outputs:
0.8 A output current (typ.)
low saturation voltage
built-in current limiter
` Thermal protection
` Flyback diodes
` Tacho output without extra sensor
` Position pulse stage for phase-locked-loop control
` Transconductance amplifier for an external control transistor.


Application

· VCR
· Laser beam printer
· Fax machine
· Blower
· Automotive.


Pinout

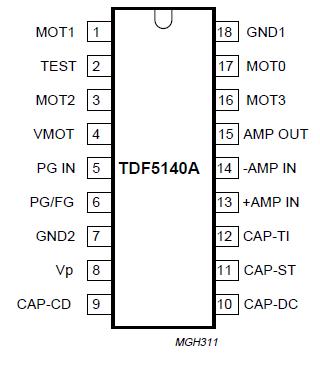

Connection Diagram


Description

The TDF5140A is a bipolar integrated circuit used to drive 3-phase brushless DC motors in full-wave mode. The device is sensorless (saving of 3 hall-sensors) using the back-EMF sensing technique to sense the rotor position.
