TDE1897C

Features: ·0.5A OUTPUT CURRENT·18V TO 35V SUPPLY VOLTAGE RANGE·INTERNAL CURRENT LIMITING·THERMAL SHUTDOWN·OPEN GROUND PROTECTION·INTERNAL NEGATIVE VOLTAGE CLAMPING TO VS - 45V FOR FASTDEMAGNETIZATION·DIFFERENTIAL INPUTS WITH LARGE COMMON MODE RANGE AND THRESHOLD HYSTERESIS·UNDERVOLTAGELOCKOUTWITH ...

product image

TDE1897C Picture
See larger image
SeekIC No. : 004517050 Detail

TDE1897C: Features: ·0.5A OUTPUT CURRENT·18V TO 35V SUPPLY VOLTAGE RANGE·INTERNAL CURRENT LIMITING·THERMAL SHUTDOWN·OPEN GROUND PROTECTION·INTERNAL NEGATIVE VOLTAGE CLAMPING TO VS - 45V FOR FASTDEMAGNETIZATIO...

TDE1897C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDE1897C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·0.5A OUTPUT CURRENT
·18V TO 35V SUPPLY VOLTAGE RANGE
·INTERNAL CURRENT LIMITING
·THERMAL SHUTDOWN
·OPEN GROUND PROTECTION
·INTERNAL NEGATIVE VOLTAGE CLAMPING TO VS - 45V FOR FASTDEMAGNETIZATION
·DIFFERENTIAL INPUTS WITH LARGE COMMON MODE RANGE AND THRESHOLD HYSTERESIS
·UNDERVOLTAGELOCKOUTWITH HYSTERESIS
·OPEN LOAD DETECTION
·TWO DIAGNOSTIC OUTPUTS
·OUTPUT STATUS LED DRIVER


Pinout

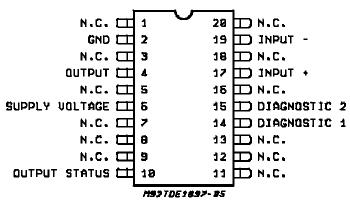

Connection Diagram


Specifications

Symbol Parameter Value Unit
VS Supply Voltage (Pins 3 - 1) (TW < 10ms) 50 V
VS VO Supply to Output Differential Voltage. See also VCl 3-2 (Pins 3 - 2) internally limited V
Vi Input Voltage (Pins 7/8) -10 to VS +10 V
Vi Differential Input Voltage (Pins 7 - 8) 43 V
Ii Input Current (Pins 7/8) 20 mA
IO Output Current (Pins 2 - 1). See also ISC internally limited A
El Energy from Inductive Load (TJ= 85) 200 mJ
Ptot Power Dissipation. See also THERMAL CHARACTERISTICS. internally limited W
Top Operating Temperature Range (Tamb) -25 to +85
Tstg Storage Temperature -55 to 150



Description

The TDE1897C/TDE1898C is a monolithic Intelligent Power Switch in Multipower BCD Technology, for driving inductive or resistive loads. An internal Clamping Diode enables the fast demagnetization of inductive loads.

Diagnostic for CPU feedback and extensive use of electrical protections make this device inherently indistructible and suitable for general purpose industrial applications.
