Product Details

Description



Features:

·0.5A OUTPUT CURRENT
·LOW SIDE OR HIGH SIDE SWITCH CONFIGURATION
·6V TO 48V SUPPLY VOLTAGE RANGE
·OVERLOADAND SHORT CIRCUIT PROTECTIONS
·INTERNAL VOLTAGECLAMPING
·SUPPLY AND OUTPUT REVERSAL PROTECTION
·THERMAL SHUTDOWN
·GND AND VS OPENWIRE PROTECTION
·ADJUSTABLE DELAY AT SWITCH ON
·INDICATOR STATUS LED DRIVER
·+5V REGULATED AUX. VOLTAGE

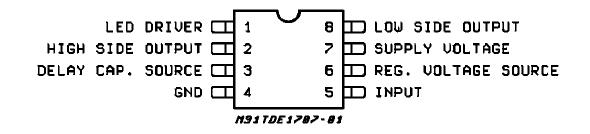

Pinout

  Connection Diagram


Specifications

Symbol Parameter Value Unit
VS Supply Voltage 50 V
VSr Supply Reverse Voltage 50 V
IO Output Current internally limited A
Vreg Regulated Voltage Pin 0 to 7 V
Vdelay Delay Cap. Surce Pin 0 to 5 V
VO Output Diff. Voltage 55 V
Vi Input Voltage -10 to 50 V
Top Operating Temperature Range -25 to +85
Tstg Storage Temperature -55 to 150
Ptot Power Dissipation internally limited W
El Energy Induct. Load 150 mJ



Description

The TDE1707 is a 0.5A Integrated Power Switch with up to 48V Power supply capability.

Two output configurations are possible: - Load to Gnd. (High Side Mode) - Load to VS (Low side Mode) Especially dedicated to proximity detectors, its internal +5V supply can be used to supply external circuits (See also AN495/0692). A signal is internally generated to block the In signal, and prevent activation of the output switch, as long as an abnormal condition is detected. The power-on transition, as well as the chip overtemperature and the output overcurrent, concurr to the generation of such signal. A minimum delay of 25ms (Typ. value) is added to the trailing edge of such signal to ensure that a stable normal situation is present when the signal disappears. The delay (of the disapperance of the block signal; no delay at its on set) can be further increased connecting a capacitor between pin3 and ground. It can drive resistive or inductive loads.
