TDE1707BFP

Power Switch ICs - Power Distribution INTELLIGENT Pwr Switch

product image

TDE1707BFP Picture
SeekIC No. : 00629639 Detail

TDE1707BFP: Power Switch ICs - Power Distribution INTELLIGENT Pwr Switch

floor Price/Ceiling Price

US $ 1.57~1.57 / Piece | Get Latest Price
Part Number:
TDE1707BFP
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 0~1605
  • Unit Price
  • $1.57
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Number of Outputs : 2 Operating Supply Voltage : 6 V to 48 V
Maximum Operating Temperature : + 85 C Mounting Style : SMD/SMT
Package / Case : SO-8

Description

On Resistance (Max) :
On Time (Max) :
Off Time (Max) :
Supply Current (Max) :
Maximum Operating Temperature : + 85 C
Mounting Style : SMD/SMT
Package / Case : SO-8
Number of Outputs : 2
Operating Supply Voltage : 6 V to 48 V


Features:

·0.5A OUTPUT CURRENT
·LOW SIDE OR HIGH SIDE SWITCH CONFIGURATION
·6V TO 48V SUPPLY VOLTAGE RANGE
·OVERLOAD AND SHORT CIRCUIT PROTECTIONS
·INTERNAL VOLTAGE CLAMPING
·SUPPLY AND OUTPUT REVERSAL PROTECTION
·THERMAL SHUTDOWN
·GND AND VS OPEN WIRE PROTECTION
·ADJUSTABLE DELAY AT SWITCH ON
·INDICATOR STATUS LED DRIVER
·+5V REGULATED AUX. VOLTAGE
·HIGH BURST IMMUNITY



Pinout

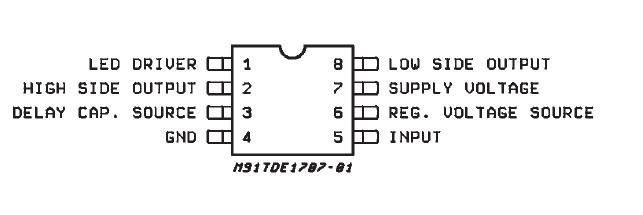

  Connection Diagram


Specifications

Symbol Parameter Value Unit
VS Supply Voltage 50 V
VSr Supply Reverse Voltage 50 V
IO Output Current internally limited A
Vreg Regulated Voltage Pin 0 to 7 V
Vdelay Delay Cap. Surce Pin 0 to 5 V
VO Output Diff. Voltage 55 V
Vi Input Voltage -10 to 50 V
Top Operating Temperature Range -25 to +85
Tstg Storage Temperature -55 to 150
Ptot Power Dissipation internally limited W
El Energy Induct. Load 150 mJ



Description

The TDE1707BFP is a 0.5A Integrated Power Switch with up to 48V Power supply capability.

Two output configurations are possible: - Load to Gnd. (High Side Mode) - Load to VS (Low side Mode) Especially dedicated to proximity detectors, its internal +5V supply can be used to supply external circuits (See also AN495/0692). A signal is internally generated to block the In signal, and prevent activation of the output switch, as long as an abnormal condition is detected. The power-on transition, as well as the chip overtemperature and the output overcurrent, concurr to the generation of such signal. A minimum delay of 25ms (Typ. value) is added to the trailing edge of such signal to ensure that a stable normal situation is present when the signal disappears. The delay (of the disapperance of the block signal; no delay at its on set) can be further increased connecting a capacitor between pin3 and ground. It can drive resistive or inductive loads.




Parameters:

Technical/Catalog InformationTDE1707BFP
VendorSTMicroelectronics
CategoryIntegrated Circuits (ICs)
Package / Case8-SOIC (3.9mm Width)
Mounting TypeSurface Mount
TypeHigh Side/Low Side Driver
Voltage - Supply6 V ~ 48 V
On-State Resistance-
Current - Output / Channel500mA
Current - Peak Output1.5A
PackagingTube
Input TypeNon-Inverting
Number of Outputs2
Operating Temperature-25°C ~ 85°C
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names TDE1707BFP
TDE1707BFP
497 6758 5 ND
49767585ND
497-6758-5
