Product Details

Description



Features:

*Point-to-point path termination device for interface termination.
*Versatile IC supports 155/622/2488 Mbits/s
  SONET/SDH interface solutions for packet over
  SONET (POS), asynchronous transfer mode
  (ATM), or simplified data link (SDL) for data over
  fiber applications.
*Supports point-to-point and multi-PHY UTOPIA.
*Low-power 3.3 V operation, CMOS technology.
*High-speed I/O is LVPECL. All other logic has 5 V
  tolerant TTL-level inputs.
*-40 to +85 temperature ran
*600 LBGA package.


Pinout

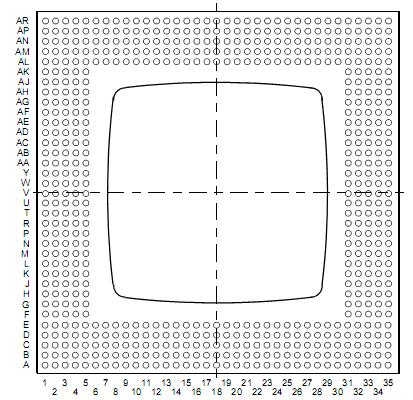

Connection Diagram


Specifications

Parameter
Min
Max
Unit
Power Supply Voltage
-0.5
4.2
V
Storage Temperature
-65
125
Pin Voltage (3.3 V)
GND -0.5
VDD+ 0.5
V
Pin Voltage (5 V tolerant)
GND -0.5
5.5
V



Description

    The TDAT042G5 SONET/SDH interface device provides a versatile solution for quad STS-3/STM-1, quad STS-12/STM-4, and for single STS-48/STM-16 point-to-point datacom/telecom applications. Constructed  using Agere Systems Inc.s state-of-the-art CMOS technology, this device incorporates integrated SONET/SDH framing, section and line overhead insertion and extraction, path termination, and generation.

    The TDAT042G5 integrated circuit provides complete encapsulation and decapsulation for packet and ATM streams into and  out of SONET/SDH payloads.

    Communication with the TDAT042G5 device is accomplished through a generic microprocessor interface. The device supports separate address and data buses.

    With the TDAT042G5 device, construction of all types of point-to-point STS-3/STS-12/STS-48 (STM-1/STM-4/STM-16) data equipment is simplified and cost-reduced, allowing extremely efficient solutions.
