TDA4881

Features: · Fully DC controllable· 3 separate video channels· Input black level clamping· White level adjustment for 2 channels only· Brightness control with correct grey scale tracking· Contrast control for all 3 channels simultaneously· Cathode feedback to internal reference for cut-off control,...

product image

TDA4881 Picture
See larger image
SeekIC No. : 004516403 Detail

TDA4881: Features: · Fully DC controllable· 3 separate video channels· Input black level clamping· White level adjustment for 2 channels only· Brightness control with correct grey scale tracking· Contrast co...

TDA4881 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA4881
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Fully DC controllable
· 3 separate video channels
· Input black level clamping
· White level adjustment for 2 channels only
· Brightness control with correct grey scale tracking
· Contrast control for all 3 channels simultaneously
· Cathode feedback to internal reference for cut-off control, which allows unstabilized video supply voltage
· Current outputs for RGB signal currents
· RGB voltage outputs to external peaking circuits
· Blanking and switch-off input for screen protection
· Sync on green operation possible


Pinout

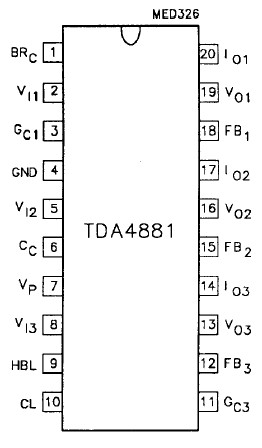

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VP supply voltage (pin 7) 0 8.8 V
Vi input voltage range (pins 2, 5 and 8) -0.1 VP V
Vext external DC voltage ranges
pins 20, 17 and 14 -0.1 VP V
pins 19, 16 and 13 no external voltages
pins 1, 3, 6 and 11 -0.1 VP V
pin 9 -0.1 VP+0.7 V
pin 10 -0.7 VP+0.7 V
Io average output current (pins 20, 17 and 14) 0 50 mA
IM peak output current (pins 20, 17 and 14)
 0 100 mA
Ptot total power dissipation - 1200 mW
Tstg storage temperature range -25 +150 °C
Tamb operating ambient temperature range 0 +70 °C
Tj junction temperature -25 +150 °C
VESD electrostatic handling for all pins (note 1) -500 +500 V

Note to the Limiting Values
1. Equivalent to discharging a 200 pF capacitor through a 0 series resistor.


Description

The TDA4881 is a monolithic integrated RGB amplifier for colour monitor systems with super VGA performance, intended for DC or AC coupling of the colour signals to the cathodes of the CRT. With special advantages the circuit can be used in conjunction with the TDA4851.
