Product Details

Description



Features:

· Full horizontal plus vertical autosync capability
· Extended horizontal frequency range from 15 to 130 kHz
· Comprehensive set of I2C-bus driven geometry adjustments and functions, including standby mode
· Very good vertical linearity
· Moire cancellation
· Start-up and switch-off sequence for safe operation of all power components
· X-ray protection
· Flexible switched mode B+ supply function block for feedback and feed forward converter
· Internally stabilized voltage reference
· Drive signal for focus amplifier with vertical parabol waveforms
· DC controllable inputs for Extremely High Tension (EHT) compensation
· SDIP32 package.

Synchronization

· Can handle all sync signals (horizontal, vertical, composite and sync-on-video)
· Output for video clamping (leading/trailing edge selectable by I2C-bus), vertical blanking and protection blanking
· Output for fast unlock status of horizontal synchronization and blanking on grid 1 of picture tube.

Horizontal section

· I2C-bus controllable wide range linear picture position, pin unbalance and parallelogram correction via horizontal phase
· Frequency-locked loop for smooth catching of horizontal frequency
· Simple frequency preset of fmin and fmax by external resistors
· Low jitter
· Soft start for horizontal and B+ control drive signals.

Vertical section

· I2C-bus controllable vertical picture size, picture position, linearity (S-correction) and linearity balance
· Output for I2C-bus controllable vertical sawtooth and parabola (for pin unbalance and parallelogram)
· Vertical picture size independent of frequency
· Differential current outputs for DC coupling to vertical booster
· 50 to 160 Hz vertical autosync range.

East-West (EW) section

· I2C-bus controllable output for horizontal pincushion, horizontal size, corner and trapezium correction
· Optional tracking of EW drive waveform with line frequency selectable by I2C-bus.

Focus section

· I2C-bus controllable output for vertical parabola
· Vertical parabola is independent of frequency and tracks with vertical adjustments.

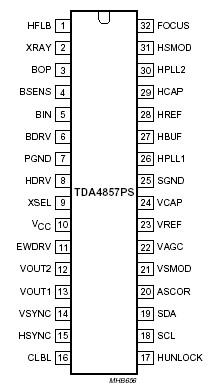

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCC supply voltage   -0.5 +16 V
Vi(n) input voltage for pins:
BIN
HSYNC, VSYNC, VREF, HREF, VSMOD and HSMOD
SDA and SCL
XRAY		   -0.5
-0.5
-0.5
-0.5		 +6.0
+6.5
+8.0
+8.0		 V
V
V
V
Vo(n) output voltage for pins:
VOUT2, VOUT1 and HUNLOCK
BDRV and HDRV		   -0.5
-0.5		 +6.5
+16		 V
V
VI/O(n) input/output voltages at pins BOP and BSENS   -0.5 +6.0 V
Io(HDRV) horizontal driver output current   - 100 mA
Ii(HFLB) horizontal flyback input current   -10 +10 mA
Io(CLBL) video clamping pulse/vertical blanking output current   - -10 mA
Io(BOP) B+ control OTA output current   - 1 mA
Io(BDRV) B+ control driver output current   - 50 mA
Io(EWDRV) EW driver output current   - -5 mA
Io(FOCUS) focus driver output current   - -5 mA
Tamb ambient temperature   -20 +70 °C
Tj junction temperature   - 150 °C
Tstg storage temperature   -55 +150 °C
VESD electrostatic discharge for all pins note 1 -150 +150 V
note 2 -2000 +2000 V

Notes
1. Machine model: 200 pF; 0.75 H; 10 W.
2. Human body model: 100 pF; 7.5 H; 1500 W.


Description

The TDA4857PS is a high performance and efficient solution for autosync monitors. All functions are controllable by the I2C-bus.

The TDA4857PS provides synchronization processing, horizontal and vertical synchronization with full autosync capability and very short settling times after mode changes. External power components are given a great deal of protection. The IC generates the drive waveforms for DC-coupled vertical boosters such as the TDA486x and TDA835x.

The TDA4857PS provides extended functions e.g. as a flexible B+ control, an extensive set of geometry control facilities and an output for vertical focus signals.

Together with the I2C-bus driven Philips TDA488x video processor family, a very advanced system solution is offered.
