TDA4856

Features: · Full horizontal plus vertical autosync capability· Extended horizontal frequency range from 15 to 130 kHz· Comprehensive set of I2C-bus driven geometry adjustments and functions, including standby mode· Very good vertical linearity· Moire cancellation· Start-up and switch-off sequence ...

product image

TDA4856 Picture
See larger image
SeekIC No. : 004516389 Detail

TDA4856: Features: · Full horizontal plus vertical autosync capability· Extended horizontal frequency range from 15 to 130 kHz· Comprehensive set of I2C-bus driven geometry adjustments and functions, includi...

TDA4856 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA4856
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Full horizontal plus vertical autosync capability
· Extended horizontal frequency range from 15 to 130 kHz
· Comprehensive set of I2C-bus driven geometry adjustments and functions, including standby mode
· Very good vertical linearity
· Moire cancellation
· Start-up and switch-off sequence for safe operation of all power components
· X-ray protection
· Power dip recognition
· Flexible switched mode B+ supply function block for feedback and feed forward converter
· Internally stabilized voltage reference
· Drive signal for focus amplifiers with combined horizontal and vertical parabola waveforms
· DC controllable inputs for Extremely High Tension (EHT) compensation
· SDIP32 package.


Pinout

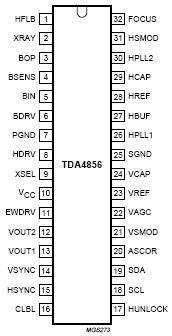

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCC supply voltage   -0.5 +16 V
Vi(n) input voltage on pins:
BIN
HSYNC, VSYNC, VREF, HREF, VSMOD and HSMOD
SDA and SCL
XRAY

-0.5
-0.5
-0.5
-0.5

 +6.0
+6.5
+8.0
+8.0

V
V
V
V

Vo(n) output voltage on pins:
VOUT2, VOUT1 and HUNLOCK
BDRV and HDRV		   -0.5
-0.5		 +6.5
+16		 V
V
VI/O(n) input/output voltages at pins BOP and BSENS   -0.5 +6.0 V
Io(HDRV) horizontal driver output current     100 mA
Ii(HFLB) horizontal flyback input current   -10 +10 mA
Io(CLBL) video clamping pulse/vertical blanking output current     -10 mA
Io(BOP) B+ control OTA output current     1 mA
Io(BDRV) B+ control driver output current     50 mA
Io(EWDRV) EW driver output current     -5 mA
Io(FOCUS) focus driver output current     -5 mA
Tamb operating ambient temperature   -20 +70
Tj junction temperature     150
Tstg storage temperature   -55 +150
VESD electrostatic discharge for all pins note 1 -150 +150 V
note 2 -2000 +2000 V

Notes
1. Machine model: 200 pF; 0.75 H; 10  .
2. Human body model: 100 pF; 7.5 H; 1500  .


Description

The TDA4856 is a high performance and efficient solution for autosync monitors. All functions are controllable by the
I2C-bus.

The TDA4856 provides synchronization processing, horizontal and vertical synchronization with full autosync capability and very short settling times after mode changes. External power components are given a great deal of protection. The IC generates the drive waveforms for DC-coupled vertical boosters such as the TDA486x and TDA835x.

The TDA4856 provides extended functions e.g. as a flexible B+ control, an extensive set of geometry control facilities, and a combined output for horizontal and vertical focus signals.

Together with the I2C-bus driven Philips TDA488x video processor family, a very advanced system solution is offered.
