TDA4854

Features: · Full horizontal plus vertical autosync capability; TV and VCR code included· Extended horizontal frequency range from 15 to130 kHz· Comprehensive set of I2C-bus driven geometry adjustments and functions, including standby mode· Very good vertical linearity· Moire cancellation· Start-up...

product image

TDA4854 Picture
See larger image
SeekIC No. : 004516387 Detail

TDA4854: Features: · Full horizontal plus vertical autosync capability; TV and VCR code included· Extended horizontal frequency range from 15 to130 kHz· Comprehensive set of I2C-bus driven geometry adjustmen...

TDA4854 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA4854
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Full horizontal plus vertical autosync capability; TV and VCR code included
· Extended horizontal frequency range from 15 to130 kHz
· Comprehensive set of I2C-bus driven geometry adjustments and functions, including standby mode
· Very good vertical linearity
· Moire cancellation
· Start-up and switch-off sequence for safe operation of all power components
· X-ray protection
· Flexible switched mode B+ supply function block for feedback and feed forward converter
· Internally stabilized voltage reference
· Drive signal for focus amplifiers with combined horizontal and vertical parabola waveforms (TDA4854)
· DC controllable inputs for Extremely High Tension (T) compensation
· SDIP32 package.


Pinout

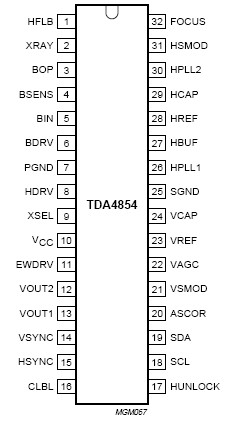

Connection Diagram


Description

TDA4854 is the input for horizontal synchronization sgnals, which can be DC-coupled TTL signals (horizontal or composite sync) and AC-coupled negative-going video sync signals. Video syncs are clamped to 1.28 V and sliced at 1.4 V. This results in a fixed absolute slicing level of 120 mV related to top sync.

For TDA4854 DC-coupled TTL signals the input clamping current is limited. The slicing level for TTL signals is 1.4 V.

The separated sync signal (either video or TTL) is integrated on an internal capacitor to detect and normalize the sync polarity.

The presence of equalization pulses is allowed for correct function of the PLL1 phase detector only in TV mode.
