TDA4841PS

Features: · Full horizontal plus vertical autosync capability· Extended horizontal frequency range from 15 to 130 kHz· Comprehensive set of I2C-bus driven geometry adjustments and functions, including standby mode· Very good vertical linearity· Moire cancellation· Start-up and switch-off sequence ...

product image

TDA4841PS Picture
See larger image
SeekIC No. : 004516382 Detail

TDA4841PS: Features: · Full horizontal plus vertical autosync capability· Extended horizontal frequency range from 15 to 130 kHz· Comprehensive set of I2C-bus driven geometry adjustments and functions, includi...

TDA4841PS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA4841PS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Full horizontal plus vertical autosync capability
· Extended horizontal frequency range from 15 to 130 kHz
· Comprehensive set of I2C-bus driven geometry adjustments and functions, including standby mode
· Very good vertical linearity
· Moire cancellation
· Start-up and switch-off sequence for safe operation of all power components
· X-ray protection
· Power dip recognition
· Flexible switched mode B+ supply function block for feedback and feed forward converter
· Internally stabilized voltage reference
· Drive signal for focus amplifiers with combined horizontal and vertical parabola waveforms
· DC controllable inputs for Extremely High Tension (EHT) compensation
· SDIP32 package.


Application

Applications that aredescribed herein for any of these products are for illustrative purposes only. Philips Semiconductors make no representation or warranty that such applications will be suitable for the specified use without further testing or modification.




Pinout

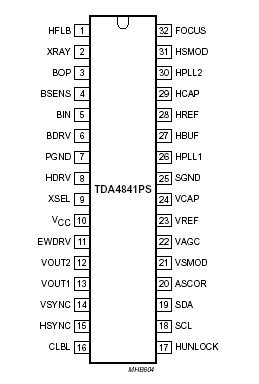

Connection Diagram


Specifications

SYMBOL
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
VCC
 supply voltage
-0.5
+13.2
V
Vn1
 input voltage
   pin BIN
   pins HSYNC, VSYNC, VREF, HREF, VSMOD and
   HSMOD
   pins SDA, SCL and XRAY
-0.5
-0.5
-0.5
+6.0
+6.5
+8.0
V
V
V
Vo(n)
 output voltage
   pins VOUT2, VOUT1 and HUNLOCK
   pins BDRV and HDRV
-0.5
-0.5
+6.5
+13.2
V
V
VI/O(n)
 input/output voltages at pins BOP and BSENS
-0.5
+6.0
V
Io(HDRV)
 horizontal driver output current
-
100
mA
Ii(HFLB)
 horizontal flyback input current
-10
+10
mA
Io(CLBL)
 video clamping pulse/vertical blanking output current
-
-10
mA
Io(BOP)
 B+ control OTA output current
-
1
mA
Io(BDRV)
 B+ control driver output current
-
50
mA
I(EWDRV)
 EW driver output current
-
-5
mA
V(EWDRV)
 maximum EW driver output voltage
-0.5
VCC
V
I(FOCUS)
 focus driver output current
-
-5
mA
Tamb
 ambient temperature
-20
+70
Tj
 junction temperature
-
150
Tstg
 storage temperature
-55
+150
Vesd
 electrostatic discharge voltage for all pins note 1
-150
+150
V
note 2
-2000
+2000
V
Notes
1. Machine model: 200 pF; 0.75 H; 10 .
2. Human body model: 100 pF; 7.5 H; 1500 .


Description

The TDA4841PS is a high performance and efficient solution for autosync monitors. All functions are controllable by the I2C-bus.

The TDA4841PS provides synchronization processing, horizontal and vertical synchronization with full autosync capability and very short settling times after mode changes. External power components are given a great deal of protection. The IC generates the drive waveforms for DC-coupled vertical boosters such as TDA486x and TDA835x.

The TDA4841PS provides extended functions e.g. as a flexible B+ control, an extensive set of geometry control facilities, and a combined output for horizontal and vertical focus signals.

Together with the I2C-bus driven Philips TDA488x video processor family, a very advanced system solution is offered.
