Product Details

Description



Features:

· Luminance signal delay from 20 to 1100 ns (minimum step 45 ns)
· Luminance signal peaking with symmetrical overshoots selectable
· Selectable 2.6 or 5 MHz peaking centre frequency and degree of peaking (-3, 0, +3 and +6 dB)
· Selectable noise reduction by coring
· Handles negative as well as positive colour-difference signals
· Selectable Colour Transient Improvement (CTI) to decrease the colour-difference signal transient times those of the high frequency luminance signals
· Selectable 5 or 12 V sandcastle input voltage
· All controls selected via the I2C-bus
· Timing pulse generation for clamping and delay time control synchronized by sandcastle pulse
· Automatic luminance signal delay correction using a control loop
· Luminance and colour-difference input signal clamping with coupling capacitor
· 4.5 to 8.8 V supply voltage range
· Minimum of external components.



Pinout

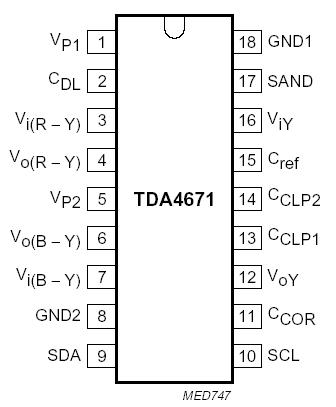

  Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VP1 supply voltage (pin 1) 0 8.8 V
VP2 supply voltage (pin 5) 0 8.8 V
Ptot total power dissipation 0 0.97 mA
Tstg storage temperature -25 +150 A
Tamb operating ambient temperature 0 70
VESD electrostatic handling
for pins 9 and 10
for other pins
note 1 -
-
-
+300
-500
±500
V
V
V
Note
1. Equivalent to discharging a 200 pF capacitor through a 0 series resistor.



Description

The TDA4671 delays the luminance signal and improves colour-difference signal transients. The luminance signal can also be improved by peaking and noise reduction (coring).
