TDA4657

Features: · Low voltage (8 V)· Low power dissipation (250 mW)· Automatic standard recognition· No adjustments required· Reduced external components· Not all time constants integrated (ACC, SECAM de-emphasis).PinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT Tstg storage...

product image

TDA4657 Picture
See larger image
SeekIC No. : 004516364 Detail

TDA4657: Features: · Low voltage (8 V)· Low power dissipation (250 mW)· Automatic standard recognition· No adjustments required· Reduced external components· Not all time constants integrated (ACC, SECAM de-...

TDA4657 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA4657
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Low voltage (8 V)
· Low power dissipation (250 mW)
· Automatic standard recognition
· No adjustments required
· Reduced external components
· Not all time constants integrated (ACC, SECAM de-emphasis).


Pinout

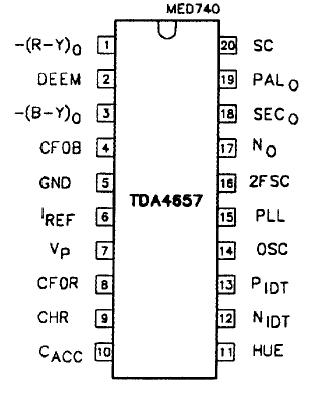

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
Tstg storage temperature   -25 +150
Tamb operating ambient temperature   0 +70
VP supply voltage   - 8.8 V
Ptot power dissipation without load - 330 mW
V20 voltage at pin 20 Imax = 10 A - 15 V
  voltage at all other pins Imax = 100 A - VP + vbe V



Description

The TDA4657 is a monolithic integrated multi-standard colour decoder for PAL, SECAM and NTSC 4.43 MHz with negative colour difference output signals. It is adapted to the integrated baseband delay line TDA4660/61.
