Product Details

Description



Features:

· Low voltage (8 V)
· Low power dissipation (250 mW)
· Automatic standard recognition
· No adjustments required
· Reduced external components
· Not all time constants integrated (ACC, SECAM de-emphasis).

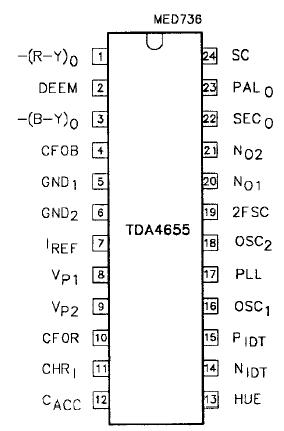

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
Tstg storage temperature   -25 +150
Tamb operating ambient temperature   0 +70
Vp supply voltage   - 8.8 V
Ptot power dissipation without load - 330 mW
V24 voltage at pin 24 Imax = 10 A - 15 V
  voltage at all other pins Imax = 100 A - VP + Vbe V



Description

The TDA4655 is a monolithic integrated multi-standard colour decoder for PAL, SECAM and NTSC (3.58 and 4.43 MHz) with negative colour difference output signals.

It is adapted to the integrated baseband delay line TDA4660/61.
