TDA4472

Features: 5 V supply voltage; low power consumption Active carrier generation by FPLL principle (frequency-phase-locked-loop) for true synchronous demodulation Very linear video demodulation, good pulse responseand excellent intermodulation figures VCO circuit operates at picture carrier frequenc...

product image

TDA4472 Picture
See larger image
SeekIC No. : 004516338 Detail

TDA4472: Features: 5 V supply voltage; low power consumption Active carrier generation by FPLL principle (frequency-phase-locked-loop) for true synchronous demodulation Very linear video demodulation, good ...

TDA4472 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA4472
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

5 V supply voltage; low power consumption
Active carrier generation by FPLL principle (frequency-phase-locked-loop) for true synchronous demodulation
Very linear video demodulation, good pulse responseand excellent intermodulation figures
VCO circuit operates at picture carrier frequency
Alignment-free AFC without external reference circuit, polarity of the AFC curve is switchable
VIF-AGC with peak sync. detection
Tuner AGC with adjustable take over point
Alignment-free quasi parallel sound (QPS) mixer forFM/NICAM sound IF signals
Intercarrier  output signal is gain controlled (necessaryfor digital sound processing)
Separate SIF-AGC with average detection
Two independent SIF inputs
Package and relevant pinning is compatible with themultistandard version TDA4470, which simplifies thedesign of an universal IF module

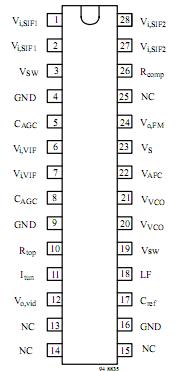

Pinout

Connection Diagram


Specifications

Parameters

Symbol

Value

Unit

Supply voltage Pin 23
SDIP28 package
SO28 and SSO28 package
Supply current Pin 23
Power dissipation SDIP28 package
SO28 and SSO28 package
Output currents Pins 12, 24 and 25

VS
VS
Is
P
P
Iout

9.0
6.0
93
840
560
5

V
V
mA
mW
mW
mA

External voltages
Pins 1, 2, 5 to 8, 10, 12, 14, 17, 18 and 24 to 28
Pins 15, 20 and 21
Pin 11
Pins 3, 13, 19 and 22
Junction temperature
Storage temperature
Electrostatic handling
*)
all pins

Vext
Tj
Tstg
VESD

+4.5
+3.5
+13.5
VS
+125
25 to +125
±300

V
V
V
V
°C
°C
V




Description

The TDA4472 is an integrated bipolar circuit for video/sound IF (VIF/SIF) signal processing in TV/VCR andmultimedia applications. The circuit processes all TVvideo IF signals with negative modulation (e.g., B/Gstandard), and the FM/NICAM sound IF signals.
