TDA4472-M

Features: • 5 V supply voltage; low power consumption• Active carrier generation by FPLL principle (frequency-phase-locked-loop) for true synchronous demodulation• Very linear video demodulation, good pulse response and excellent intermodulation figures• VCO circuit operate...

product image

TDA4472-M Picture
See larger image
SeekIC No. : 004516340 Detail

TDA4472-M: Features: • 5 V supply voltage; low power consumption• Active carrier generation by FPLL principle (frequency-phase-locked-loop) for true synchronous demodulation• Very linear vide...

TDA4472-M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA4472-M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 5 V supply voltage; low power consumption
• Active carrier generation by FPLL principle (frequency-phase-locked-loop) for true synchronous demodulation
• Very linear video demodulation, good pulse response and excellent intermodulation figures
• VCO circuit operates at picture carrier frequency
• Alignment-free AFC without external reference circuit, polarity of the AFC curve is switchable
• VIF-AGC with peak sync. detection
• Tuner AGC with adjustable take over point
• Alignment-free quasi parallel sound (QPS) mixer for FM/NICAM sound IF signals
• Intercarrier output signal is gain controlled (necessary for digital sound processing)
• Separate SIF-AGC with average detection
• Two independent SIF inputs
• Package and relevant pinning is compatible with the multistandard version TDA4470, which simplifies the design of an universal IF module


Pinout

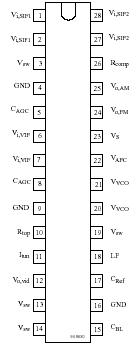

Connection Diagram


Specifications

Parameters Symbol Value Unit
Supply voltage             Pin 23
            SDIP28 package
            SO28 package		 VS
VS		 9.0
6.0		 V
V
Supply current             Pin 23 Is 93 mA
Power dissipation       SDIP28 package
                                   SO28 package		 P
P		 840
560		 mW
mW
Output currents             Pins 12, 24 and 25 Iout 5 mA
External voltages
Pins 1, 2, 5 to 8, 10, 12, 14, 17, 18 and 24 to 28
Pins 15, 20 and 21
Pin 11
Pins 3, 13, 19 and 22		 Vext
+4.5
+3.5
+13.5
VS
V
V
V
V
Junction temperature

 Tj

 +125



Storage temperature Tstg 25 to +125
Electrostatic handling *) all pins

 VESD

 ±300

 V

*) Equivalent to discharging a 200 pF capacitor trough a 0 resistor.


Description

The TDA4472-M is an integrated bipolar circuit for video/sound IF (VIF/SIF) signal processing in TV/VCR and multimedia applications. The circuit processes all TV video IF signals with negative modulation (e.g., B/G standard), and the FM/NICAM sound IF signals.
