TDA3856

Features:

· Quasi-split sound processor for all standards e. g. B/G (FM sound) and L (AM sound)
· Automatic muting of the AF2 signal (at B/G) by the input level
· AM signal processing for L standard and switching over the audio signal
· Layout-compatible with TDA3858 (32 pins) and TDA3857 (20 pins).

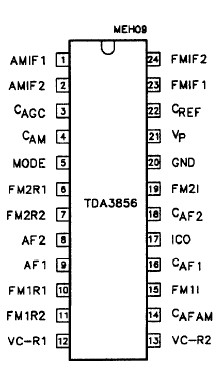

Pinout




Specifications

SYMBOL	PARAMETER	MIN.	MAX.	UNIT
VP1	supply voltage (pin 21)	-	8.8	V
VI	voltage (pins 1, 2, 5, 8, 9, 15, 17, 19, 23 and 24)	0	VP	V
Ptot	total power dissipation	0	650	mW
Tstg	storage temperature	-25	+150
Tamb	operating ambient temperature	0	+70
VESD	electrostatic handling (note 1) all pins except pins 1, 2, 23 and 24 pins 1, 2, 23 and 24	±500 +400 -500	- - -	V V V

Description

Separate symmetrical IF inputs for FM or AM sound.

Gain controlled wideband IF amplifier TDA3856 is an input select switch. AGC generation due to peak sync for FM or mean signal level for AM. Reference amplifier for the regeneration of the vision carrier. Optimized limiting amplifier for AM suppression in the regenerated vision carrier signal and 90°phase shifter. Intercarrier mixer for FM sound, output with low-pass filter. Separate signal processing for 5.5 and 5.74 MHz intercarriers. Wide supply voltage range, only 300 mW power dissipation at 5 V.
