TDA3853T

Features: · Suitable for standards B/G (I, M, N, DK), see Table 1· Gain controlled 3-stage IF amplifier with typically 80 MHz bandwidth· High performance synchronous demodulator for negative and positive video modulation; passive regeneration of the reference signal· Peak-sync-related AGC· AGC out...

product image

TDA3853T Picture
See larger image
SeekIC No. : 004516308 Detail

TDA3853T: Features: · Suitable for standards B/G (I, M, N, DK), see Table 1· Gain controlled 3-stage IF amplifier with typically 80 MHz bandwidth· High performance synchronous demodulator for negative and pos...

TDA3853T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA3853T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Suitable for standards B/G (I, M, N, DK), see Table 1
· Gain controlled 3-stage IF amplifier with typically 80 MHz bandwidth
· High performance synchronous demodulator for negative and positive video modulation; passive regeneration of the reference signal
· Peak-sync-related AGC
· AGC output voltage take over point adjustable
· High sensitive TV identification based on vertical pulse duty cycle recognition; IDENT output
· Video off switch
· Sound trap buffer amplifier
· Tracking generator (AFT output) with Q-demodulator and internal 90 degree phase shifter for tracking the reference circuit
· Low supply voltage 5 V, low power consumption


Pinout

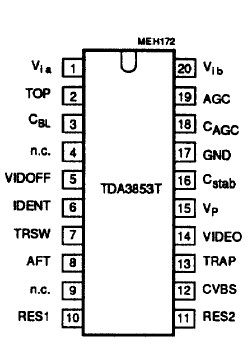

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VP supply voltage 0 6.0 V
IP supply current on pin 15 - 55 mA
Vn voltage on pins 6, 8 and 12 -0.3 VP V
V5,7 voltage on pins 5 and 7 -0.3 5.5 V
V13 voltage on pin 13 -0.3 5.0 V
V14 voltage on pin 14 -0.3 4.2 V
V19 voltage on pin 19 -0.3 13.2 V
I2,16 current on pins 2 and 16 - -200 A
I5,6 current on pins 5 and 6 - -60 A
I7 current on pin 7 - -100 A
I8 current on pin 8 - -50 A
I12 current on pin 12 - -10 mA
I14 current on pin 14 - -3 mA
Tstg storage temperature range -25 +150
Tamb operating ambient temperature range 0 +70
VESD electrostatic handling(1) for all pins(2) - ±300 V



Description

Monolithic integrated circuit of the TDA3853T for vision IF signal processing in TV and VTR sets.
