TDA3827

Features: · Wide supply voltage range from 4.5 V to 13.2 V· Wide frequency range from 4 to 12 MHz· High ripple rejection· High precision and temperature compensated FM-demodulator output· Multiple-input AF operational amplifiers with offset compensation· SCART AF input / AF output (low impedance)·...

product image

TDA3827 Picture
See larger image
SeekIC No. : 004516303 Detail

TDA3827: Features: · Wide supply voltage range from 4.5 V to 13.2 V· Wide frequency range from 4 to 12 MHz· High ripple rejection· High precision and temperature compensated FM-demodulator output· Multiple-i...

TDA3827 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA3827
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Wide supply voltage range from 4.5 V to 13.2 V
· Wide frequency range from 4 to 12 MHz
· High ripple rejection
· High precision and temperature compensated FM-demodulator output
· Multiple-input AF operational amplifiers with offset compensation
· SCART AF input / AF output (low impedance)
· External AF input
· High-level AF output voltage with low distortion
· External selection of the source selector AF gain
· Low switching noise between AF and mute
· Wide volume-control range


Pinout

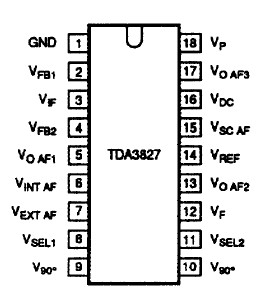

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VP supply voltage (pin 18) -0.5 VP + 6.8 V
Vext external voltage (pins 2 to 10, 12 to 15 and 17) -0.3 VP - 0.7 V
external voltage at pin 11 -0.3 13.2 V
external voltage at pin 16 -0.3 VP V
RL external DC load resistance (pin 13 and pin 17) 5.0 - k
CL capacitive output load (pin 13 and pin 17) - 1500 pF
Ptot total power dissipation - 450 mW
Tstg storage temperature range -40 + 150
Tamb operating ambient temperature range 0 + 70
VESD ESD-protection (note 1) ±2000 - V



Description

The TDA3827 contains a single FM demodulator with SCART switches, a mute function and volume control.
