Product Details

Description



Features:

General
` Six voltage regulators
` Five microprocessor controlled regulators (regulators 2 to 6)
` Regulator 1 and reset operate during load dump and thermal shutdown
` Low reverse current of regulator 1
` Very low quiescent current when regulators 2 to 6 and power switches are switched off (VI(ig) = 0 V)
` Reset output
` Adjustable display regulator
` High ripple rejection
` Three power switches
` Low noise for regulators 2 to 6.
Protections
` Reverse polarity safe (down to -18 V without high reverse current)
` Able to withstand voltages up to 18 V at the output (supply line may be short-circuited)
` ESD protected on all pins
` Thermal protection
` Load dump protection
` Foldback current limit protection (except for regulator 2)
` The regulator outputs and the power switches are DC short-circuited safe to ground and Vbat.

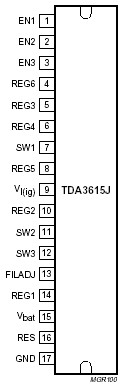

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
Vbat/I(ig) supply voltage
operating
jump start
load dump protection		 regulators on
t 10 minutes
t 50 ms; tr 2.5 ms		 -
-
-		 18
30
50		 V
V
V
Vrp reverse polarity voltage non-operating - -18 V
Ptot total power dissipation Tamb = 25 - 62.5 W
Tstg storage temperature non-operating -55 +150
Tamb ambient temperature operating -40 +85
Tj junction temperature operating -40 +150



Description

The TDA3615J is a multiple output voltage regulator with power switches, intended for use in car radios with or without a microprocessor. TDA3615J contains:

` One fixed voltage regulator (regulator 1) intended to supply a microprocessor, that also operates during load dump and thermal shutdown

` 5 power regulators supplied by VI(ig)

` 3 power switches with protections

` 3 enable inputs for selecting regulators 2 to 6 and the three power switches

` Very low quiescent current of typical 110 A.
