Features:

· One VP-state controlled regulator
· Regulator and reset outputs operate during load dump
· Supply voltage range of -18 to +50 V
· Low quiescent current (battery detection switched off)
· High ripple rejection
· Dual reset output.


Pinout

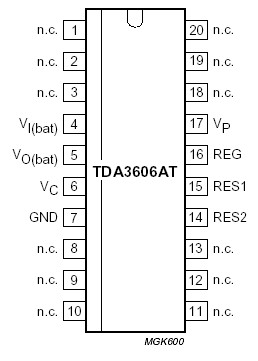

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VP supply voltage
operating
jump start
load dump protection		 t 10 minutes
for 50 ms; tr 2.5 ms		 -
-
-		 25
30
50		 V
V
V
VP reverse battery voltage non-operating - -18 V
VI(bat)p positive pulse voltage at battery input VP = 14.4 V; RI = 5 k - 50 V
VI(bat)n negative pulse voltage at battery input VP = 14.4 V; RI = 5 k - -100 V
Ptot total power dissipation Tamb = 25 - 2.5 W
Tstg storage temperature non-operating -55 +150
Tamb operating ambient temperature   -40 +85
Tj junction temperature operating -40 +150



Description

The TDA3606A is a low power voltage regulator.

TDA3606A contains:

1. One fixed voltage regulator with a foldback current protection, intended to supply a microprocessor, that also operates during load dump

2. A reset-signal can be used to interface with the microprocessor

3. Supply pin of TDA3606A can withstand load dump pulses and negative supply voltages

4. Defined start-up behaviour; regulator will be switched on at a supply voltage higher than 7.6 V and off when the output voltage of the regulator drops below 2.4 V.
