Product Details

Description



Features:

· A black-current stabilizer which controls the black-currents of the three electron-guns to a level low enough to omit the black-level adjustment
· Contrast control of inserted RGB signals
· No black-level disturbance when non-synchronized external RGB signals are available on the inputs
· NTSC capability with hue control.


Application

· Teletext/broadcast antiope
· Channel number display.

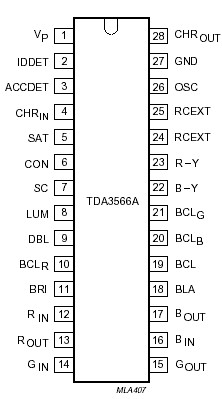

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VP supply voltage (pin 1) - 13.2 V
Ptot total power dissipation - 1700 mW
Tamb operating ambient temperature -25 +70
Tstg storage temperature -25 +150



Description

The TDA3566A is a decoder for the PAL and/or NTSC colour television standards. It combines all functions required for the identification and demodulation of PAL/NTSC signals. Furthermore it contains a luminance amplifier, an RGB-matrix and amplifier. These amplifiers supply output signals up to 4 V peak-to-peak (picture information) enabling direct drive of the discrete output stages.

The circuit also contains separate inputs for data insertion, analog and digital, which can be used for text display systems.
