TD62S011AFM

Features: `Ultra-small HSON6 package with heat sink on rear`High output withstandard voltage: VCE (SUS) = 50 V (min)`Large output current: IOUT = 100 mA (max)`Built-in input resistor: RIN = 14 k`Input signal: Low Level Active`Built-in output clamp diodesPinoutSpecifications Characteristics ...

product image

TD62S011AFM Picture
See larger image
SeekIC No. : 004515965 Detail

TD62S011AFM: Features: `Ultra-small HSON6 package with heat sink on rear`High output withstandard voltage: VCE (SUS) = 50 V (min)`Large output current: IOUT = 100 mA (max)`Built-in input resistor: RIN = 14 k`Inp...

TD62S011AFM Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TD62S011AFM
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Ultra-small HSON6 package with heat sink on rear
`High output withstandard voltage: VCE (SUS) = 50 V (min)
`Large output current: IOUT = 100 mA (max)
`Built-in input resistor: RIN = 14 k
`Input signal: Low Level Active
`Built-in output clamp diodes

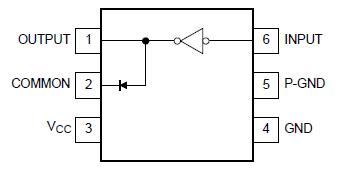

Pinout

Connection Diagram


Specifications

Characteristics
Symbol
Rating
Unit
Supply voltage
VCC
-0.5~7.0
V
Collector-emitter voltage
VCEO
50
V
Output withstand voltage
VCE (SUS)
50
V
Output current
IOUT
100
mA
Input voltage
IIN
-0.5~7.0
V
Input current
IIN
-10
mA
Clamp diode reverse voltage
VR
50
V
Clamp diode forward current
IF
100
mW
Power dissipation
PD (Note 4)
0.78
W
Saturated thermal resistance
Rth (j-a)
(Note 4)
160
°C/W
Rth (j-c)
(Note 5)
25
Operating temperature
Topr
-40~85
°C
Storage temperature
Tstg
-55~150
°C
Note 4: 114.3 × 76.2 ×1.6 mm glass epoxy film substrate Cu heat dissipation pattern 100 mm2
Note 5: When an infinite heat sink is mounted.


Description

The TD62S011AFM is a 1-channel noninverting sink-current driver with a PNP transistor at the first stage and a NPN transistor at the second stage.

The driver TD62S011AFM incorporates output clamp diodes used to clamp the counter electromotive force which is generated when driving an inductive load. Because the driver operates by source input current, it is optimal for interfacing with sink-current driven general-purpose CMOS logic ICs and microprocessors. Also it is optimal for driving relays and LEDs. When using the driver, pay attention to the thermal conditions
