Product Details

Description



Features:

·Output current (single output) 500 mA MAX.
·High sustaining voltage output 35 V MIN. (TD62001P / F Series) 50 V MIN. (TD62001AP / AF Series)
·Output clamp diodes
·Inputs compatible with various types of logic
·Package Type−P, AP : DIP−16 pin
·Package Type−F, AF : SOP−16 pin


Pinout

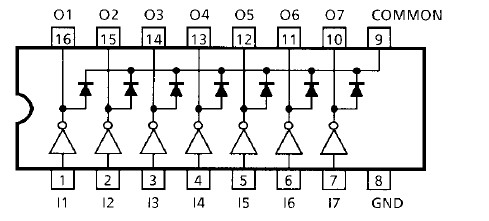

Connection Diagram


Specifications

CHARACTERISTIC
SYMBOL
RATING
UNIT
Output Sustaining
Voltage		 P, F
AP, AF
VCE (SUS)
−0.5~35
−0.5~50
V
Output Current
IOUT
500
mA / ch
Input Voltage
VIN (Note 1)
−0.5~30
V
Input Current
IIN (Note 2)
25
mA
Clamp Diode
Reverse Voltage		 P, F
AP, AF
VR
35
50
V
Clamp Diode Forward Current
IF
500
mA
Power Dissipation P
AP
F, AF
PD
1.0
1.47
0.54 / 0.625
(Note 3)
W
Operating
Temperature		 P
AP, F, AF
Topr
−30~75
−40~85
°C
Storage Temperature
Tstg
−55~150
°C
Note 1: Except TD62001P / AP / F / AF
Note 2: Only TD62001P / AP / F / AF
Note 3: On glass epoxy PCB (30 × 30 × 1.6 mm Cu 50%)
