TD62304AF

Features: ·Output current (single output) 500 mA (Max.)·High sustaining voltage 35 V (TD62304P/F, 62305P/F) 50 V (TD62304AP/AF, 62305AP/AF) (Min.)·Low level active input·Input compatible with 5-V TTL and 5-V CMOS·Package type-P, AP: DIP-16 pin·Package type-F, AF: SOP-18 pinPinoutSpecifications ...

product image

TD62304AF Picture
See larger image
SeekIC No. : 004515883 Detail

TD62304AF: Features: ·Output current (single output) 500 mA (Max.)·High sustaining voltage 35 V (TD62304P/F, 62305P/F) 50 V (TD62304AP/AF, 62305AP/AF) (Min.)·Low level active input·Input compatible with 5-V TT...

TD62304AF Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TD62304AF
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Output current (single output) 500 mA (Max.)
·High sustaining voltage 35 V (TD62304P/F, 62305P/F) 50 V (TD62304AP/AF, 62305AP/AF) (Min.)
·Low level active input
·Input compatible with 5-V TTL and 5-V CMOS
·Package type-P, AP: DIP-16 pin
·Package type-F, AF: SOP-18 pin


Pinout

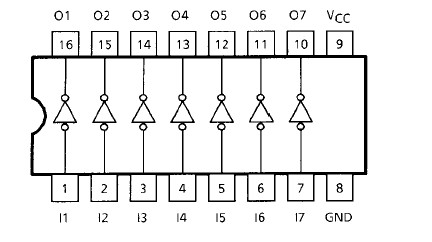

Connection Diagram


Specifications

CHARACTERISTIC
SYMBOL
RATING
UNIT
Supply Voltage
VCC
−0.5~7.0
V
Output Sustaining
Voltage		 P, F
VCE (SUS)
−0.5~35
V
AF
−0.5~50
AP
−0.5~50
Output Current
IOUT
500
mA / ch
Input Voltage
VIN
−22~VCC +0.5
−0.5~7 (Note 1)
V
Input Current
IIN
−10
mA
Power Dissipation P
PD
1.0
W
AP
1.47
F, AF
0.625 (Note 2)
Operating
Temperature		 P
Topr
−30~75
°C

−40~85
Storage Temperature
Tstg
−55~150
°C
Note 1: TD62305P / AP / F / AF
Note 2: On glass epoxy PCB (30 × 30 × 1.6 mm Cu 50%)


Description

The TD62304AF are non−inverting transistor arrays, which are comprised of eight NPN darlington buffer-transistor output stages and PNP input stages.

These devices of the TD62304AF can be operated by source input voltage and are suitable for operations with a 5-V general purposed logic IC such as 5-V TTL, 5-V CMOS and 5-V Microprocessor which have sink current output drivers. Please observe the thermal condition for using.
