Features:

·Output current (single output) 500 mA (Max.)
·High sustaining voltage output
   35 V (Min.) (TD62003PA series)
   50 V (Min.) (TD62003APA series)
·Output clamp diodes
·Inputs compatible with various types of logic.
   TD62003PA, APA R_IN = 2.7 kΩ
   TD62004PA, APA R_IN = 10.5 kΩ
·Package DIP−16 pin

Pinout

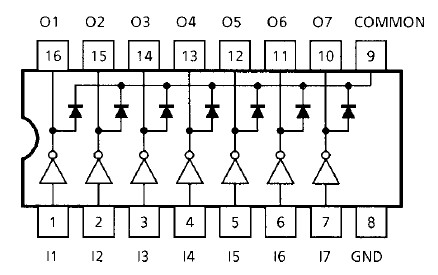

Connection Diagram

Specifications

CHARACTERISTIC		SYMBOL	RATING	UNIT
Output Sustaining Voltage	PA	V_{CE (SUS)}	−0.5~35	V
Output Sustaining Voltage	APA	V_{CE (SUS)}	−0.5~50	V
Output Current		I_OUT	500	mA / ch
Input Voltage		V_IN	−0.5~30	V
Clamp Diode Reverse Voltage	PA	V_R	35	V
Clamp Diode Reverse Voltage	APA	V_R	50	V
Clamp Diode Forward Current		I_F	500	mA
Power Dissipation		P_D	1.47	W
Operating Temperature	PA	T_opr	−30~75	°C
Operating Temperature	APA	T_opr	−40~85	°C
Storage Temperature		Tstg	−55~150	°C
