TCD2704D

Features: • Number of image sensing elements: 7500 elements × 4 line• Image sensing element size: 5 µm × 5 µm on 5 µm centers• Photo sensing region: High sensitive PN photodiode• Distanced between photodiode array: Color (40 µm, 8 lines), B/W-color (...

product image

TCD2704D Picture
See larger image
SeekIC No. : 004515476 Detail

TCD2704D: Features: • Number of image sensing elements: 7500 elements × 4 line• Image sensing element size: 5 µm × 5 µm on 5 µm centers• Photo sensing region: High sensitiv...

TCD2704D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TCD2704D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Number of image sensing elements: 7500 elements × 4 line
• Image sensing element size: 5 µm × 5 µm on 5 µm centers
• Photo sensing region: High sensitive PN photodiode
• Distanced between photodiode array: Color (40 µm, 8 lines), B/W-color (60 µm, 12 lines)
• Clock: 2 phase (5 V)
• Power supply: 12 V power supply voltage
• Internal circuit: Clamp circuit
• Package: 22 pin CERDIP package
• Color filter: Red, green, blue


Pinout

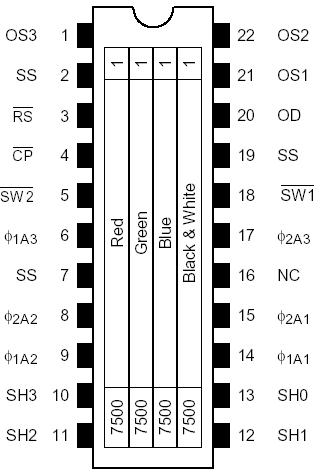

Connection Diagram


Specifications

Characteristic Symbol Rating Unit
Clock pulse voltage V −0.3~8.0 V
Shift pulse voltage VSH V
Reset pulse voltage VRS V
Clamp pulse voltage VCP V
Changeover switch voltage VSW V
Power supply voltage VOD −0.3~15 V

Operating temperature		 Topr
 0~60 °C
Storage temperature Tstg −25~85 °C
Note 1: All voltage are with respect to SS terminals (ground).


Description

The TCD2704D is a high sensitive and low dark current 7500 elements × 4 line CCD color image sensor which includes CCD drive circuit, clamp circuit.

The  TCD2704D sensor is designed for scanner. The device contains a row of 7500 elements × 4 line photodiodes which provide a 24 lines/mm across a A3 size paper. The device is operated by 5 V pulse and 12 V power supply.
