TCD2000P

Features: ·Number of Image Sensing Elements : 480 elements (160×3 color sequential)·Image Sensing Element Size : 11µm×33µm on 33µm centers·Photo Sensing Region : High sensitive pn photodiode·Clock : 3 Input pulses 5V·Internal Circuit : Sample & Hold circuit, Clamp circuit·Pac...

product image

TCD2000P Picture
See larger image
SeekIC No. : 004515456 Detail

TCD2000P: Features: ·Number of Image Sensing Elements : 480 elements (160×3 color sequential)·Image Sensing Element Size : 11µm×33µm on 33µm centers·Photo Sensing Region : High sensitive pn ...

TCD2000P Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TCD2000P
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Number of Image Sensing Elements
   : 480 elements (160×3 color sequential)
·Image Sensing Element Size : 11µm×33µm on 33µm centers
·Photo Sensing Region : High sensitive pn photodiode
·Clock : 3 Input pulses 5V
·Internal Circuit : Sample & Hold circuit, Clamp circuit
·Package : 20 pin
·Color Filter : Red, Green, Blue


Pinout

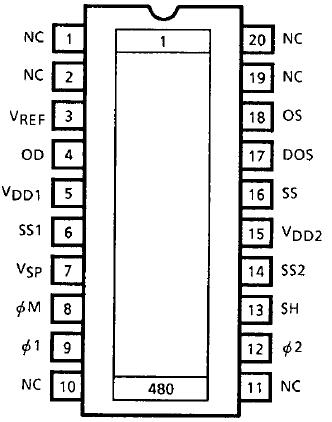

Connection Diagram


Specifications

CHARACTERISTIC SYMBOL RATING UNIT
Master Clock Voltage VM −0.3~8 V
Clock Pulse Voltage V
Shift Pulse Voltage VSH
Reference Voltage VSH −0.3~15 V
Power Supply Voltage (Analog) VAD
Power Supply Voltage (Digital) VDD1
VDD2
Sample & Hold Switch Voltage VSP −0.3~15 V
Operating Temperature Topr 0~60 °C
Storage Temperature Tstg −25~85 °C
Note 1: All voltage are with respect to SS terminals (Ground).


Description

The TCD2000P is a high sensitive and low dark current 480−elements color linear image sensor which includes CCD drive circuit, clamp circuit and sample & hold circuit.

The TCD2000P CCD drive circuit consists of the pulse generator. therefore it is possible to easy drive by applying simple pulses. The sensor is designed for scanner.
