Product Details

Description



Features:

· Number of image sensing elements: 5340 elements × 4 line
· Image sensing element size: 7 µm × 7 µm on 7 µm centers
· Photo sensing region: High sensitive PN photodiode
· Distanced between photodiode array: Color (28 µm, 4 lines), B/W-color (56 µm, 8 lines)
· Clock: 2 phase (5 V)
· Power supply: 12 V power supply voltage
· Internal circuit: Clamp circuit
· Package: 22 Pin CERDIP package
· Color filter: Red, green, blue


Pinout

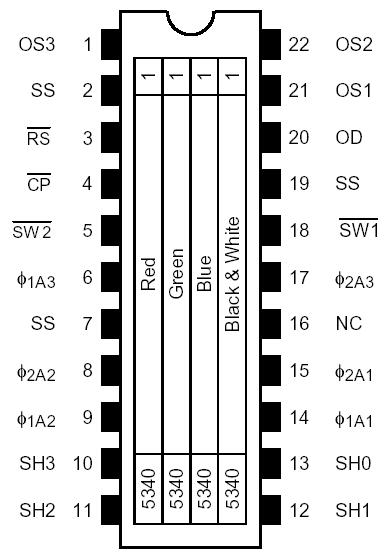

Connection Diagram


Specifications

CHARACTERISTIC SYMBOL RATING UNIT
Clock Pulse Voltage V −0.3~8 V
Shift Pulse Voltage VSH V
Reference Voltage VRS V
Power Supply Voltage (Analog) VCP V
Sample & Hold Switch Voltage VSW −0.3~15 V
Operating Temperature Topr 0~60 °C
Storage Temperature Tstg −25~85 °C
Note 1: All voltage are with respect to SS terminals (ground).


Description

The TCD2561D is a high sensitive and low dark current 5340 elements × 4 line CCD color image sensor which includes CCD drive circuit, clamp circuit.

The TCD2561D sensor is designed for scanner. The device contains a row of 5340 elements × 4 line photodiodes which provide a 24 lines/mm across a A4 size paper. The device is operated by 5 V pulse and 12 V power supply.
