TCA 965 B

Features: ` Two window settings direct setting of lower and upper edge voltage (window edges) indirect setting by window center voltage and half window width` Adjustable hysteresis` Digital outputs with open collectors for currents up to 50 mA` Adjustable reference voltage VStabPinoutSpecification...

product image

TCA 965 B Picture
See larger image
SeekIC No. : 004515363 Detail

TCA 965 B: Features: ` Two window settings direct setting of lower and upper edge voltage (window edges) indirect setting by window center voltage and half window width` Adjustable hysteresis` Digital outputs ...

TCA 965 B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TCA 965 B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Two window settings
direct setting of lower and upper edge voltage (window edges)
indirect setting by window center voltage and half window width
` Adjustable hysteresis
` Digital outputs with open collectors for currents up to 50 mA
` Adjustable reference voltage VStab

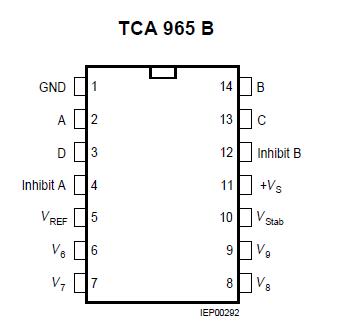

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Limit Values
min.
max.
Supply voltage (pin 11)
VS
30
V
Difference in input voltage between pins 6, 7, 8
VI
15
V
Input voltage (pins 6, 7, 8, 9)
VI
30
V
Output current (pins 2, 3, 13, 14)
IQ
50
mA
Output voltage (pins 2, 3, 13, 14)
independent of VS
VQ
30
V
Voltage on VREF (pin 5)
VR
8
V
Output current of stabilized voltage (pin 10)
I10
10
mA
Inhibit input voltage (pins 4, 12)
VIH
7
V
Junction temperature
Tj
150
°C
Storage temperature
Tstg
-55
125
°C
Thermal resistance system - air P-DIP-14-1
Rth SA
80
K/W
Supply voltage
VS
4.5
30
V
Ambient temperature
TA
-25
85
°C
