TCA 3727

Features: • 2 x 0.75 amp. / 50 V outputs• Integrated driver, control logic and current control (chopper)• Fast free-wheeling diodes• Max. supply voltage 52 V• Outputs free of crossover current• Offset-phase turn-ON of output stages• Z-diode for logic suppl...

product image

TCA 3727 Picture
See larger image
SeekIC No. : 004515360 Detail

TCA 3727: Features: • 2 x 0.75 amp. / 50 V outputs• Integrated driver, control logic and current control (chopper)• Fast free-wheeling diodes• Max. supply voltage 52 V• Outputs f...

TCA 3727 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TCA 3727
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 2 x 0.75 amp. / 50 V outputs
• Integrated driver, control logic and current control (chopper)
• Fast free-wheeling diodes
• Max. supply voltage 52 V
• Outputs free of crossover current
• Offset-phase turn-ON of output stages
• Z-diode for logic supply
• Low standby-current drain
• Full, half, quarter, mini step


Pinout

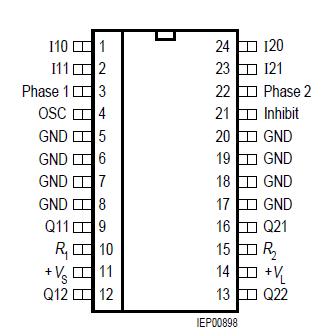

Connection Diagram


Specifications

Parameter
Symbol
Limit Values
Unit
 Remarks
min.
max.
Supply voltage VS 0 52 V
Logic supply voltage VL 0 6.5 V
Z-diode
Z-current of VL IL   50 mA
Output current IQ 1 1 A
Ground current IGND 2 2 A
Logic inputs VIxx
6
 VL + 0.3 V
IXX ; Phase 1, 2;Inhibit
R1 , R2, oscillator input voltage VRX,
VOSC
0.3
 VL + 0.3 V
Junction temperature Tj
Tj
125
150		 °C
°C

max. 1,000h
Storage temperature Tstg
40
 125 °C



Description

TCA 3727 is a bipolar, monolithic IC for driving bipolar stepper motors, DC motors and other inductive loads that operate on constant current. The control logic and power output stages of TCA 3727 for two bipolar windings are integrated on a single chip which permits switched current control of motors with 0.75 A per phase at operating voltages up to 50 V.
