Features:

• High output peak current of twice 2.5 A
• Twice 2.0 A output peak current for TCA 2465 G
• Large supply voltage range up to 42 V
• High slew rate of 2 V/ms
• Outputs fully protected (DC short-circuit proof for P-SIP-9-1 VS up to 18 V; for P-DSO-20-6 VS up to 14 V)
• Thermal overload protection
• Inhibit input enables "tristate" outputs
• Integrated clamp diodes


Pinout

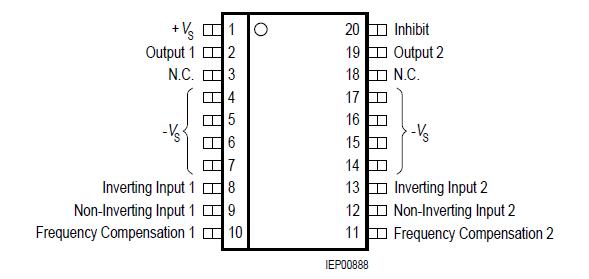

Connection Diagram


Specifications

Parameter
Symbol
Limit Values
Unit
 Remarks
min.
max.
Supply voltage VS   ± 21
V
 V2-3 or V8-7
Differential input
voltage		 VID   ( VS) + (VS)
V
Output current IQ 2.5 (2)1) 2.5 (2)1)
A
 I1 or I9
Output current IQ 1.5
A
 VS± 15 V;
VQ < VS
Supply current IS 5 ( 2)1) 5.5 (2)1)
A
 IS
Ground current IGND 5.5 ( 2)1) 5 (2)1)
A
 I4
Input voltage VI VS VS
V
 V2, V3, V7, V8
Inhibit input V6 VS VS
V

Junction temperature Tj   150
°C
 measured to pin 5
Storage temperature
range		 Tstg 50 150
°C
 zero airflow
zero heat sink area



Description

The TCA 2465 IC contains two identical op amps, each supplying a high output current of 2.5 A at supply voltages between ± 3 V and  ± 20 V. Internal compensation permits negative feedback of the amplifiers up to a min. of 20 dB. Both amplifiers can be disconnected at V8  2 V via an inhibit input. Integrated protective circuits protect the outputs against short-circuit to + VS and VS and prevent thermal overloading of the IC. TCA 2465 G comes in a special surface-mounted power package similar to P-DSO-20 and delivers twice 2.0 A output peak current.
