Features: Low ON resistance: Ron = 22 Ω (typ.) (VCC − VEE = 3 V) Ron = 15 Ω (typ.) (VCC − VEE = 6 V)High speed: tpd = 3 ns (typ.) (VCC = 3.0 V) Low power dissipation: ICC = 4 µA (max) (Ta = 25°C)Input level: VIL = 0.8 V (max) (VCC = 3 V) VIH = 2.0 V (min) (VCC = 3 V)P...
TC7MZ4051FK: Features: Low ON resistance: Ron = 22 Ω (typ.) (VCC − VEE = 3 V) Ron = 15 Ω (typ.) (VCC − VEE = 6 V)High speed: tpd = 3 ns (typ.) (VCC = 3.0 V) Low power dissipation: ICC = 4...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Features: Low voltage operation: VCC = 1.8~3.6 VHigh speed operation: tpd = 3.5 ns (max) (VCC = 3....
Features: • Low voltage operation: VCC = 1.8~3.6 V• High speed operation: tpd = 3.0 ns...
Features: • 26 series resistors on outputs.• Low voltage operation: VCC = 1.8~3.6 V...
Characteristics |
Symbol |
Rating |
Unit |
Power supply voltage |
VCC |
−0.5~7.0 |
V |
VCC~VEE |
-0.5~7.0 | ||
Control input voltage |
VIN |
−0.5~7.0 |
V |
Switch I/O voltage |
VI/O |
VEE - 0.5~VCC + 0.5 |
V |
Input diode current |
IIK |
−20 |
mA |
I/O diode current |
IIOK |
±20 |
mA |
Switch through current |
IT |
±25 |
mA |
DC VCC/ground current |
ICC |
±50 |
mA |
Power dissipation |
PD |
180 |
mW |
Storage temperature |
Tstg |
−65~150 |
°C |

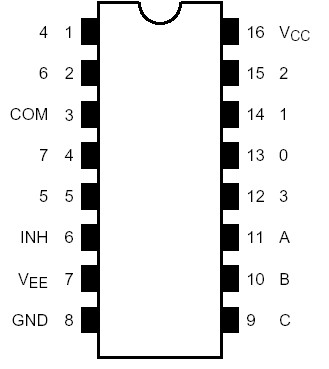

The TC7MZ4051FK/4052/4053FK are high-speed, low-voltage drive analog multiplexer/demultiplexers using silicon gate CMOS technology. In 3 V and 5 V systems these can achieve high-speed operation with the low power dissipation that is a feature of CMOS.
The TC7MZ4051FK/4052/4053FK offer analog/digital signal selection as well as mixed signals. The 4051 has an 8-channel configuration, the 4052 has an 4-channel × 2 configuration, and the 4053 has a 2-channel × 3 configuration.
The switches for each channel are turned ON by the control pin digital signals.
Although the control signal logical amplitude (VCC − GND) is small, the device can perform large-amplitude (VCC − VEE) signal switching.
For example, if VCC = 3 V, GND = 0 V, and VEE = −3 V, signals between −3 V and +3 V can be switched from the logical circuit using a single 3 V power supply.
All input pins of TC7MZ4051FK are equipped with a newly developed input protection circuit that avoids the need for a diode on the plus side (forward side from the input to the VCC). As a result, for example, 5 V signals can be permitted on the inputs even when the power supply voltage to the circuits is off. As a result of this input power protection, the TC7MZ4051/4052/4053FK can be used in a variety of applications, including in the system which has two power supplies, and in battery backup circuits.
